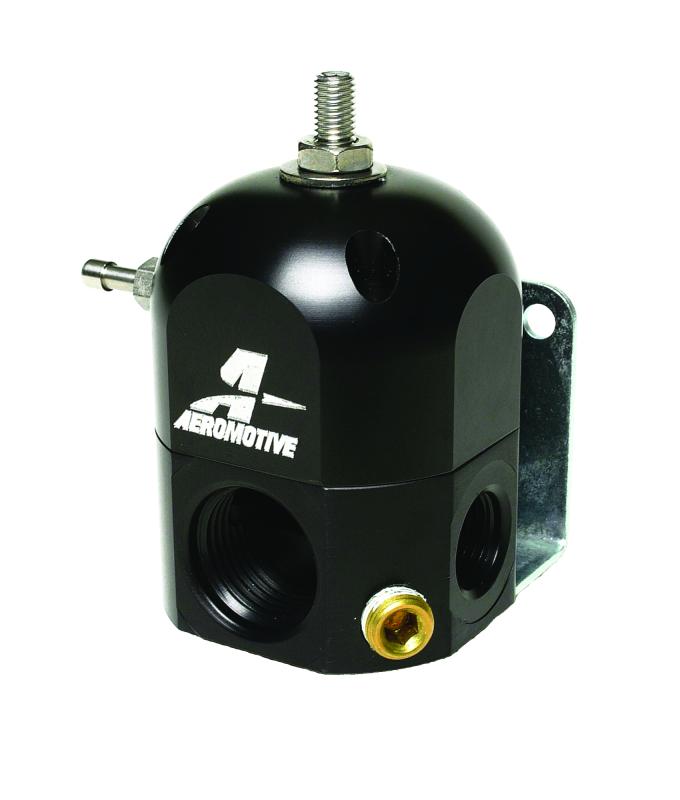

Aeromotive A1000 Return Style Fuel Pressure Regulator with Marine Hard Coat 13207

Aeromotive A1000 Return Style Fuel Pressure Regulator with Marine Hard Coat 13207
$642.99 ea
NEWARRIVING SOONEstimated Ship Date 08/13/2026 (If Ordered Today)
Model: 5118316
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]
Full volume at perfect pressure, the A1000 Regulator was designed for use with our Marine A1000 Fuel Pump or any similar style pump. This regulator is perfect for naturally aspirated or blow-through turbo-charged or supercharged engines. Base fuel pressure adjustable from 3-15 PSI. (1) ORB-10 inlet port and (1) ORB-8 return port. (2) O RB-6 outlet ports and 1/8' NPT gauge port. Fuel pressure rises on a 1:1 ratio when referencing boost.
About Aeromotive

For over 26 years, Aeromotive has been committed to designing and manufacturing the highest quality fuel systems and components for OE applications and the automotive aftermarket. A brand backed by integrity and reliability, a passion for performance and a hands-on, real world approach drove Aeromotive to its position as industry leader. Since our previous acquisition in 2015, PerTronix has been searching for a strong automotive brand in its growth cycle with a strong culture that would align well with PerTronix Performance Brands and 2020 brought with it the acquisition of Aeromotive and Waterman Racing Components. Moving forward, our teams will foster collaboration on new product development, processes and best practices with each brand operating from their existing locations to benefit from the capabilities of their respective manufacturing facilities.

Downloads:

Download Name File Size
132-0408-0.pdf910.18KB

Videos:

Specifications:

Adjustable Yes
Color Black
Fuel Delivery Type Carburation
Gauge Included No
Gauge Port Yes
Grade Type Performance
Inlet Gender Female
Inlet Gender.1 Female
Inlet Port Diameter ORB-10
Marine Approved Yes
Maximum Pressure 15
Minimum Pressure 5
Mounting Bracket Included Yes
Outlet Port Diameter ORB-06
Part Type Fuel Pressure Regulator
Port Quantity 3
Pressure Range 5-15
Prop 65 Flag Yes
Return Port Diameter ORB-08
Return Port Gender Female
Vacuum/Boost Port Yes
Warranty Time 12 Months
