A Body Frame Connector fits most 67-75 Mopar A Bodies. All wheelbases (108" and 111" from 1967-1969 and most 111" wheelbase from 1970-1975).
These frame connectors fit Dart, Scamp, and Valian from 1967-1975. 1967-1969 A-Body Plymouth Barracuda. If your car is a 108" wheelbase car from 1970-1975 (such as a duster or dart sport), you should use the X896-1070-P frame connectors.

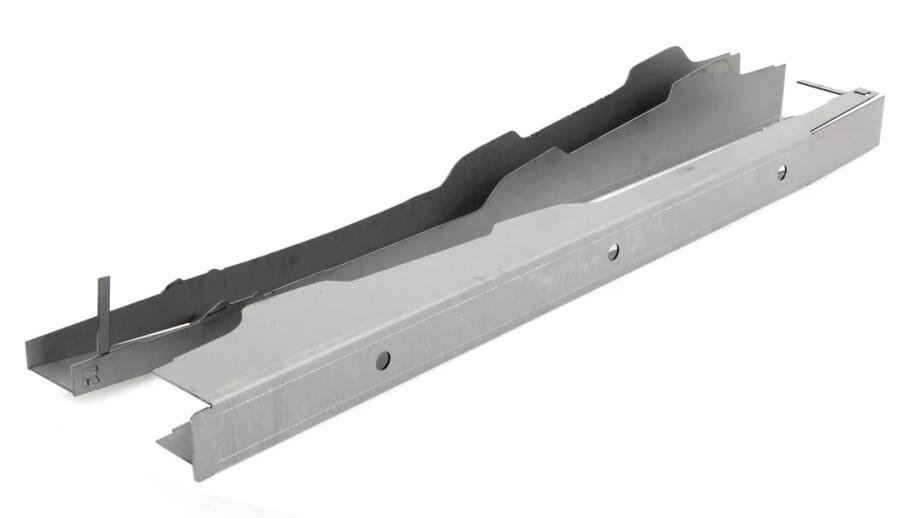

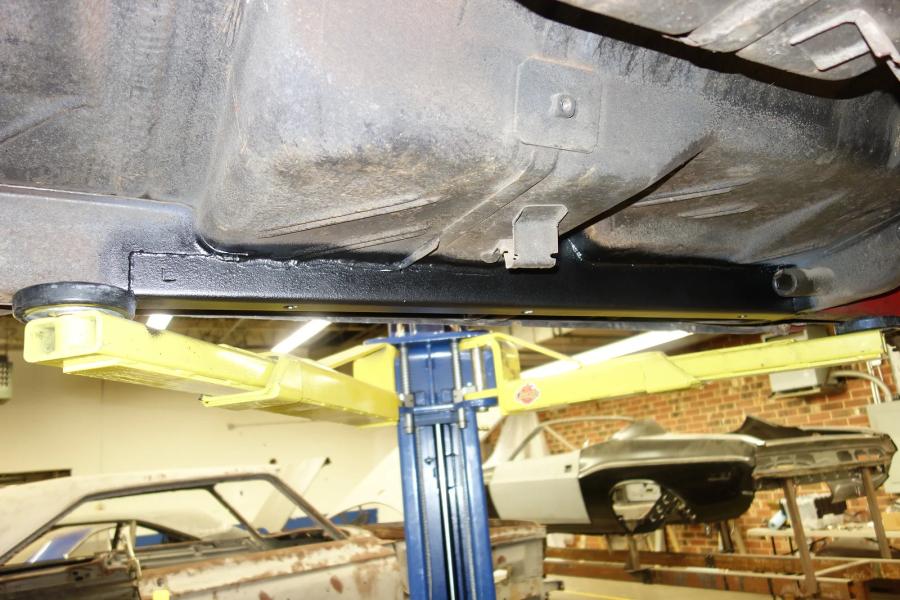

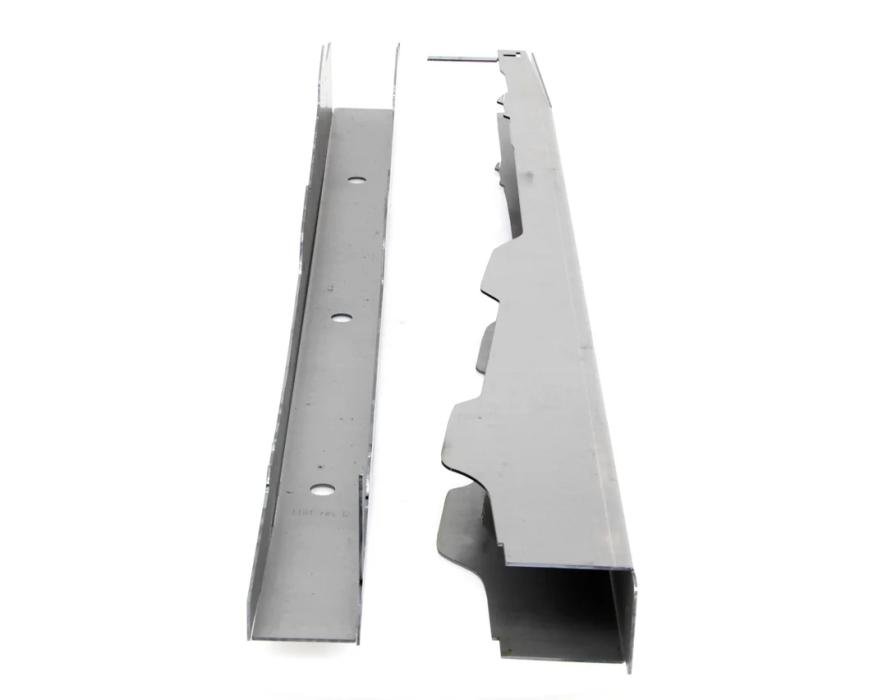

CNC Machine cut from 12ga thick steel (original factory rails are made from 16 gauge material) and CNC bent for a precision fit, these frame rail connectors are designed to be welded in to your existing unibody floor pan. No cutting of the floorpan is required and once welded in, they create a fully boxed frame rail connector that is stronger than the original factory frame rails!! A Unique design fits both Dodge cars (67-75) and Early Plymouth A Bodies (67-69). Requires welding. Look under image gallery for more detailed pictures of installation.
Auto Metal Direct is a team of true car guys with years of experience in sheet metal reproduction, car restoration and paint/body work. We believe that quality is not subjective! Our mission is to provide the best customer experience for the Ford, Mopar and GM classic car markets - both in products and in service.
Our panels are made from proper gauge steel and include all correct-as-original clips, tabs, flanges, bends and seams. Each time a prototype body panel comes off of a new tooling, we test fit it on a car. The marked up prototype is then used to change and improve the tools, and a new prototype is produced. This procedure might be repeated multiple times but, once the part is finally approved, you can be assured of a quality part.
| Make | Model | Years |
| Dodge | Dart | 1967 - 1975 |
| Plymouth | Barracuda | 1967 - 1969 |
| Plymouth | Scamp | 1971 - 1975 |
| Plymouth | Valiant | 1967 - 1975 |
| Brand | X-Parts |
| Gauge of Metal | 13 Ga |
| Height | 6 in |
| Length | 48 in |
| Weight | 1 lbs |
| Width | 3 in |
