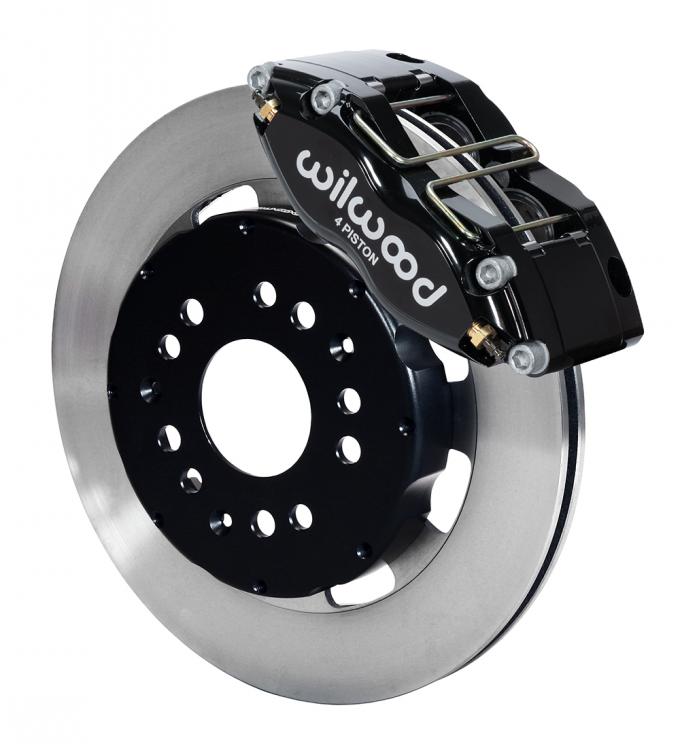

Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292

Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292
Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292Wilwood Brakes Dynapro Radial Big Brake Front Brake Kit (Hat) 140-8292
$1,922.99 ea
NEWOut of stock with WILWOOD ENGINEERING as of 12/08/2024
Model: 3920367
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

Radial mounting provides secure and accurate installation of the forged billet DynaPro four piston caliper with large diameter rotors for this group of front and all wheel drive sport compacts. These kits are the perfect compliment to wheel, tire, and suspension upgrades on daily drivers, competition vehicles, and custom styled show machines. Each kit is engineered specific for each vehicle to maintain full compatibility with the OE master cylinder output and factory ABS functions. Optional caliper finishes and rotor designs provide choices that enable the builder to personalize the style and optimize brake performance.

Fitment Notes

1. Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

About Wilwood Engineering

Wilwood Engineering designs and manufactures high-performance disc brake systems. Since the company’s inception in 1977 by Bill Wood, we have developed a substantial matrix of brake components and engineering techniques that allow us to quickly and reliably create brake systems for almost any application. Our core ability is the rapid development of custom engineered brake systems using a combination of off-the-shelf and custom components. In addition to designing and manufacturing brakes for all types of competitive motor sports, Wilwood also manufactures brake systems and components for agricultural equipment, industrial applications, utility vehicles, snowmobiles, quads, motorcycles and military vehicles.

With headquarters in Camarillo, California, Wilwood employs approximately 250 people. We have on-shelf stock of more than 300 different brake calipers, 200 rotor designs, 100 master cylinder designs and a wide assortment of brackets, fittings, valves and brake lines. Our off-shelf brake calipers range in size from tiny calipers used on go-carts and light duty industrial equipment, to heavy duty original equipment brakes for the U.S. military Humvee.

Wilwood's engineering department uses the latest computer-aided design and manufacturing techniques in conjunction with finite element analysis, dynamic test and cycle test equipment, to find high-performance and reliability solutions for the most difficult braking tasks. Our extensive inventory of proprietary on-the-shelf components allow us to provide cost-effective solutions for unique brake applications.

Wilwood is ISO 9000 compliant and has extensive experience maintaining quality levels of 100ppm or less for original equipment manufacturers.

Downloads:

Download Name File Size
ds470.pdf308.82KB

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Fitment Notes
Chrysler Sebring 1995 - 2000 Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.
Coupe without ABS Models
Dodge Avenger 1995 - 2000 Kit may fit some 15" wheels. Check wheel clearance diagram in kit installation instructions before purchase.

Specifications:

Details
Part Type Disc Brake Caliper / Rotor / Pad Kit

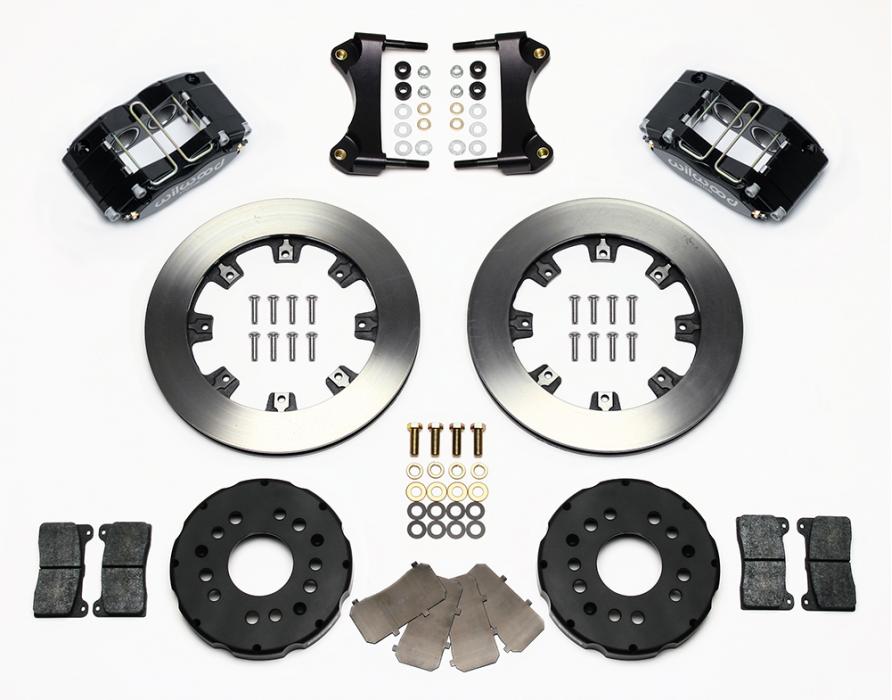

Kit Components & Specs / Rotors
Bedded No
Design Type ULHP
Dynamically Balanced No
Left Hand - Part No 160-5843
Material Iron
Outside Diameter (in) 12.19
Right Hand - Part No 160-5843
Style Plain Face
Surface Finish Plain
Type Ultralite HP 32
Vane Count 32 V
Width (in) 0.81
Parts & Accessories / Caliper Parts
Bleed Screw Kit 220-6069
CrossOver O-Ring Kit 130-10540
O-ring Kit 130-4346
Pad Retainer 300-7316
Replacement Dustboot 210-14384
Replacement Piston 1 200-7519
Replacement Piston 2 200-7519
Wear Plate - Left Hand 300-5876
Wear Plate - Right Hand 300-5876
Kit Components & Specs / Rotor Hats
Bolt Circle 1 5 X 4.50
Bolt Circle 2 5 x 4.50
Finish Color Black E-Coat
Hat - Part No 170-8320
Hat Offset Dimension (in) 0.940
Material Aluminum
Stud Diameter - BC 1 0.480
Stud Diameter - BC 2 0.520
Stud Diameter - BC 3 0.000
Type Big Brake Hat - Short Offset
Parts & Accessories / Hat
Bolt Kit 230-8390
Kit Components & Specs / Calipers
Brake Pad Area (In²) 6.36
Brake Pad Plate 7816
Brake Pad Volume (In³) 3
Finish Color Black Powder Coat
Left Hand - Part No 120-14706-BK
Mount Type Radial
Pad Compound BP-10
Piston 1 Bore (in) 1.62
Piston 2 Bore (in) 1.62
Piston Area (In²) 4.12
Piston Count 4
Piston Type Stainless
Right Hand - Part No 120-14706-BK
Type Dynapro Dust Seal Radial Mount
Caliper Type 4 - Black Powder Coat
Min Wheel Diameter Req'd* 15
Mount Type Radial
Rotor Diameter 12.19
Spindle Type Factory Disc Spindle
Parts & Accessories / *Brake Lines Needed
Front Line Kit 220-8293
