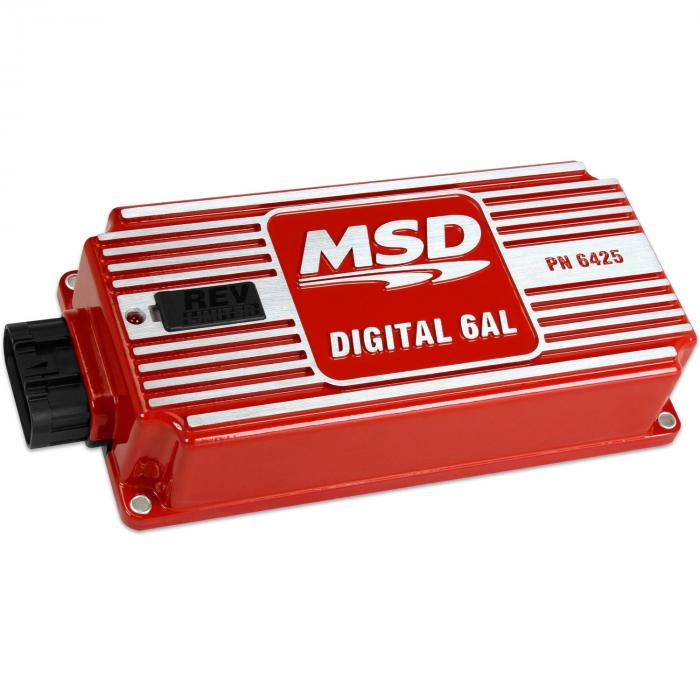

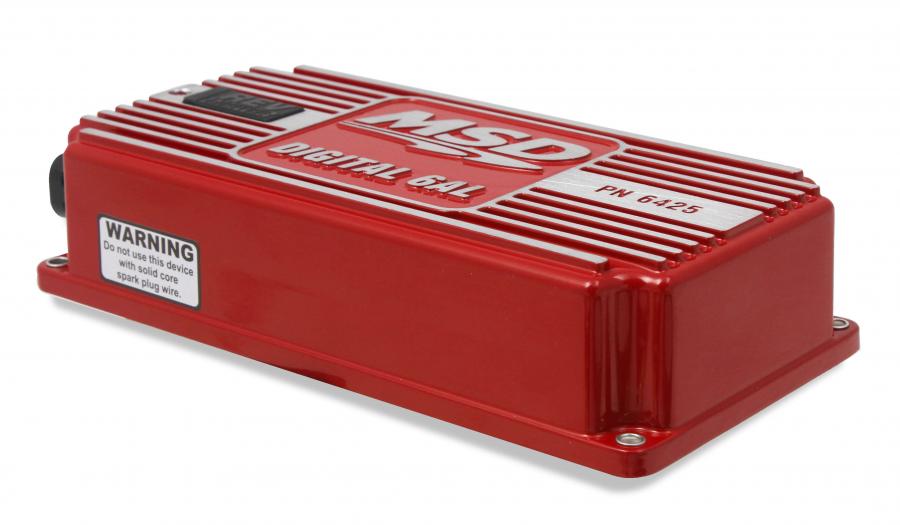

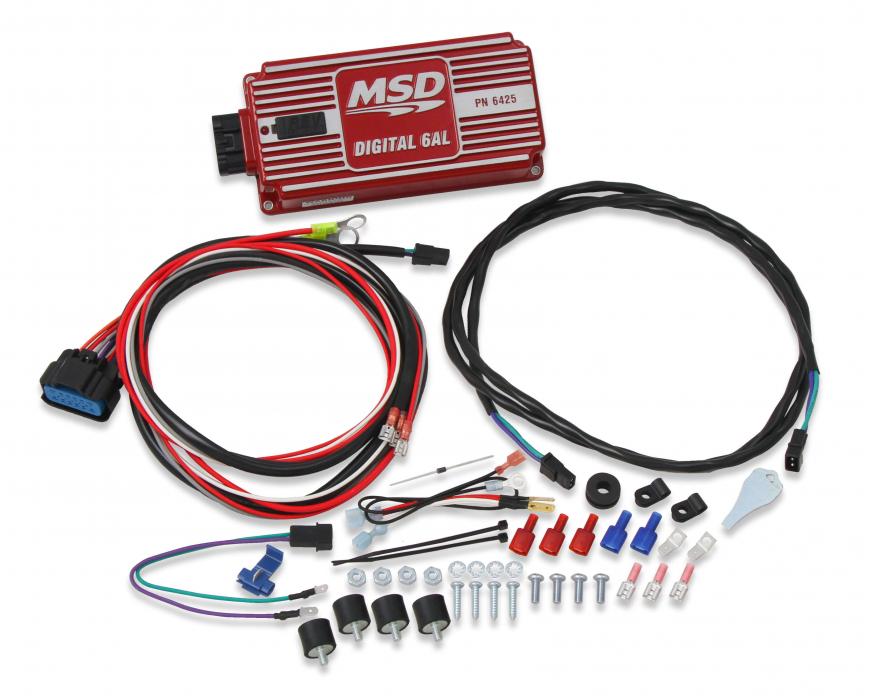

MSD Digital-6AL Ignition Controller 6425

MSD Digital-6AL Ignition Controller 6425
MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425MSD Digital-6AL Ignition Controller 6425
$402.99 ea
NEWARRIVING SOONEstimated Ship Date 08/11/2021 (If Ordered Today)3954 available from HOLLEY PERFORMANCE PRODUCTS as of 07/25/2021
Model: 2033872
Supplier has not provided any fitment data for this product.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

IMPORTANT: Electrical items are covered by a 30 day EXCHANGE ONLY WARRANTY. There are no returns or refunds on such items.

The MSD 6AL Ignition Control set the standards that other ignitions strive to reach. In fact, you'll find ignitions from other companies that carry the 6AL name (and in some cases, the same part number). For 2011, the bar has been raised even higher as we introduce the all new Digital 6AL Ignition Control! MSD started with a clean slate and drew up plans for an all new housing. We kept the same footprint as the traditional 6AL but lowered the profile for a sleek look. The wiring is all routed out one end of the unit through a sealed and locking connector. This eases installation and keeps your wiring looking neat and clean. The rev limiter was moved right on top of the housing for easy access to the two rotary dials to set the limit in 100 rpm increments. Inside the Digital 6AL you'll find a microprocessor that monitors and controls every firing and rev limit. The circuits are updated with efficient components that help the ignition produce more power while drawing less current! In fact, the new Digital 6AL delivers over 530 volts to the coil with up to 135mJ of spark energy for every firing! Increased output combined with MSD's proven multiple spark series is a win-win situation!
Features:
  • High Output w/530 Volts And 135Mj Of Spark Energy
  • Efficient components use less current to produce more power
  • Set An Rpm Limit w/Two Rotary Dials In 100 Rpm Increments
  • Built-in LED for system checks

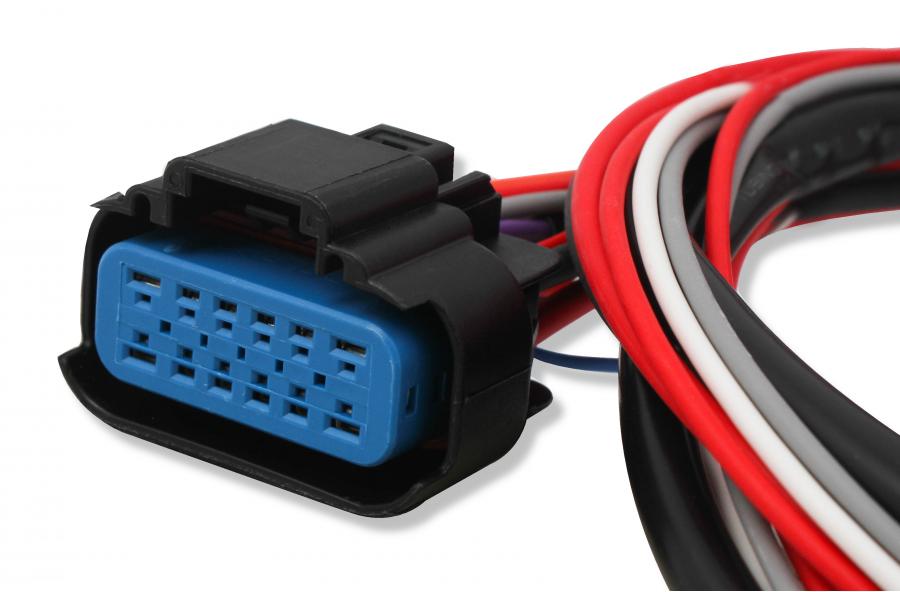

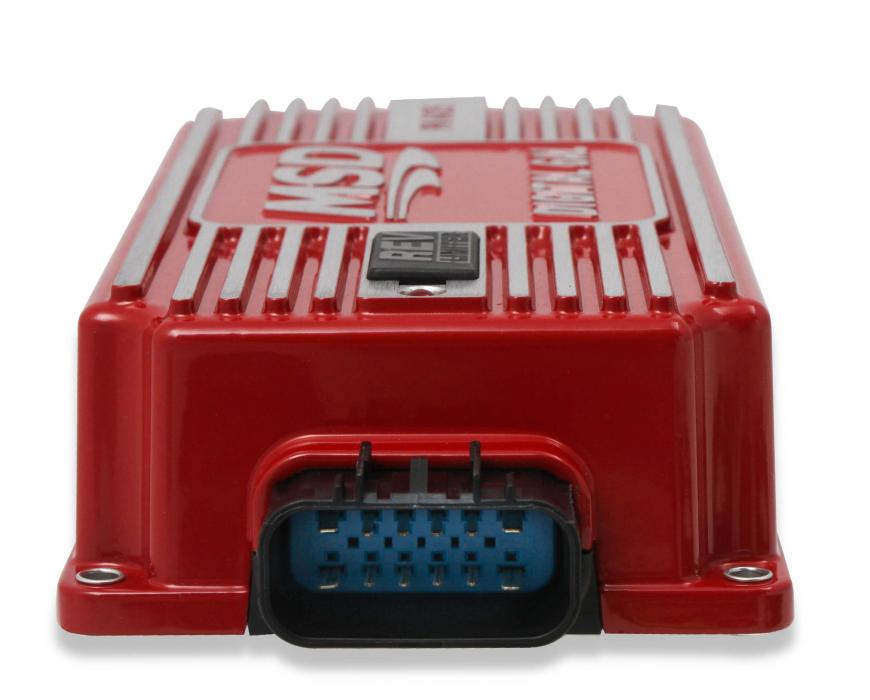

  • All wires exit through a locked; sealed connector
  • Compatible w/4/6/8 Cylinder Engines
Holley Performance Emission Code 1: This part is legal for sale and use on Emissions Controlled Vehicles; in all 50 states; when used in accordance with the manufacturers application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number. The following vehicles are considered Emissions Controlled Vehicles: 1966 and newer U.S. manufactured California Certified vehicles/1968 and newer U.S. manufactured Federally Certified vehicles/1968 and newer Foreign manufactured vehicle
Installation Notes:
CARB EO: D-40-43
About MSD Ignition

Your performance electronic source for ignitions, coils, distributors, timing controls, spark plug wires, starters and electronic fuel injection.

Downloads:

Download Name File Size
frm31841_6a_6al_flyer.pdf15.18MB
6425.pdf1.43MB
6425_add.pdf64.07KB

Videos:

Specifications:

Color Red
Current Draw 1.1 Amp per 1000 RPM
Emission Code 1
Features Rev Limiter
Part Type Ignition Control Module
Primary Voltage 520-540
RPM 11000
RPM Range 11,000 RPM
Secondary Voltage 45000
Spark duration 20 Degree Crankshaft Rotation
Spark Energy 135-145 mJ per spark
Voltage 12-15 V; 7 V Start
Voltage Required 12-15 Volts, 7 Volt Start
WARNING CA Proposition 65 WARNING: Cancer and Reproductive Harm
Weight and Size 1.7 lbs., 8"L x 4"W x 1.825"H
