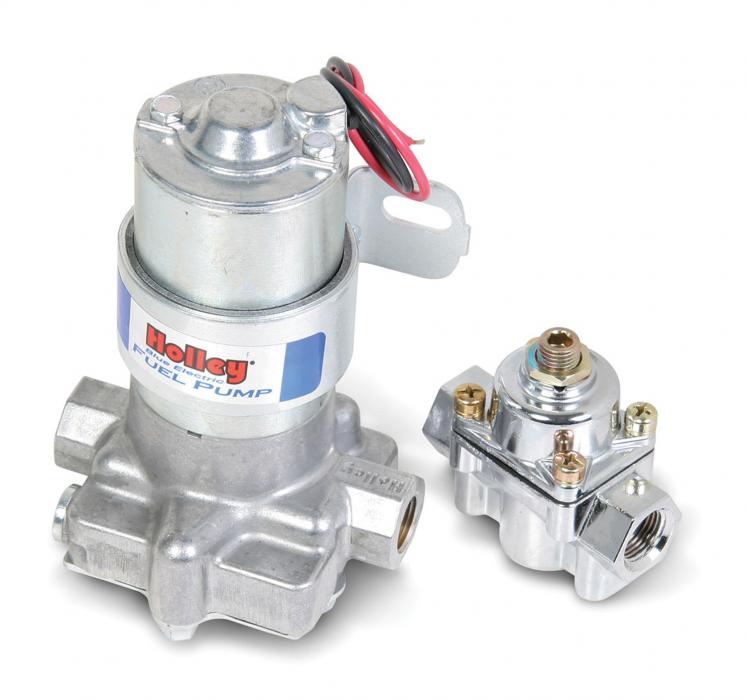

The world famous Holley Red, Blue, and Black pumps are the most recognized performance pumps of all times. They have been powering racing legends and street enthusiasts alike since the early 1970's. Their time-proven rotor/vane design is known to get the job done and readily available rebuild parts allow you to keep on running with minimal expense!
- Tumble Polished Billet Look
- Lower Housing Casting Designed For Enhanced Fuel Flow
- Motor Draws Only 3 Amps Current
- Relay Kit P/N 12-753 And 7 1/2 Amp Fuse Recommended
- Improved Design For Street/Strip Applications
- Distinctive Blue Logo

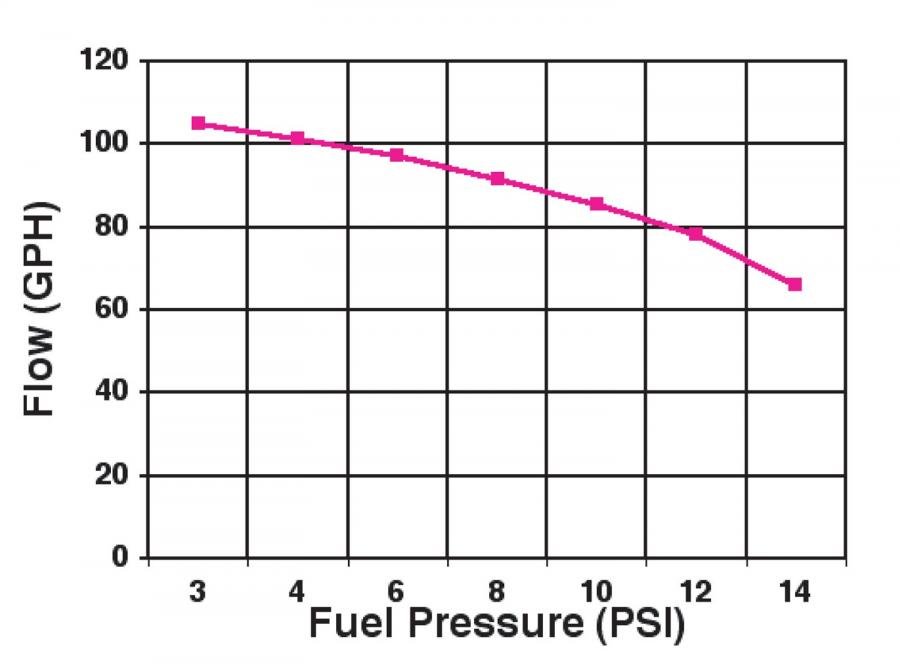

- Flows 110 gph
- Flows 88 gph At 9 PSI
- Maximum Pressure Is 14 PSI
- Includes P/N 12-803 Fuel Pressure Regulator
- Provides Constant Fuel Flow With No Pulsation
- Has Externally Accessible Pressure Relief Valve Max 14 PSI
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations

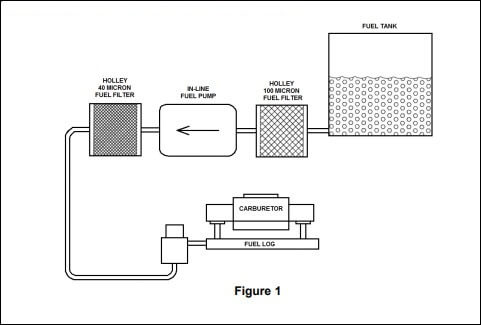

Should be mounted below the fuel level of the tank for a good gravity feed on the inlet side. Relay kit P/N 12-753 recommended. These are to be used with 12 volt systems only.
