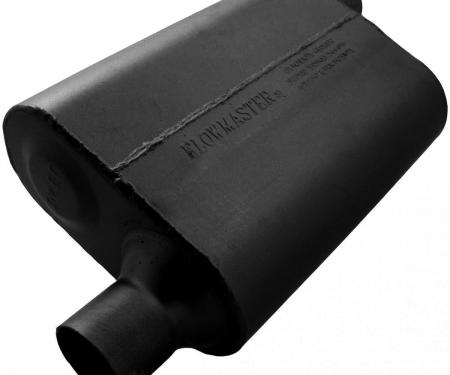

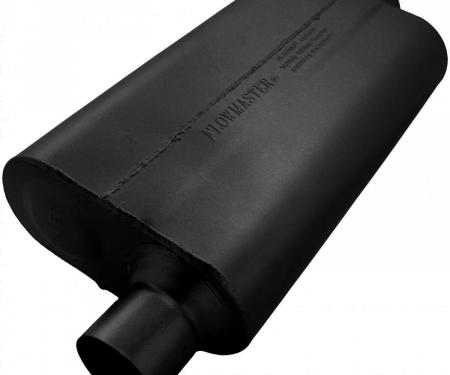

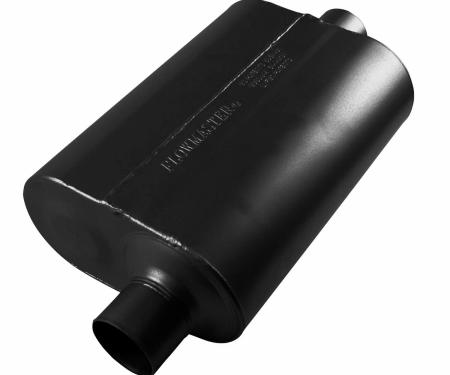

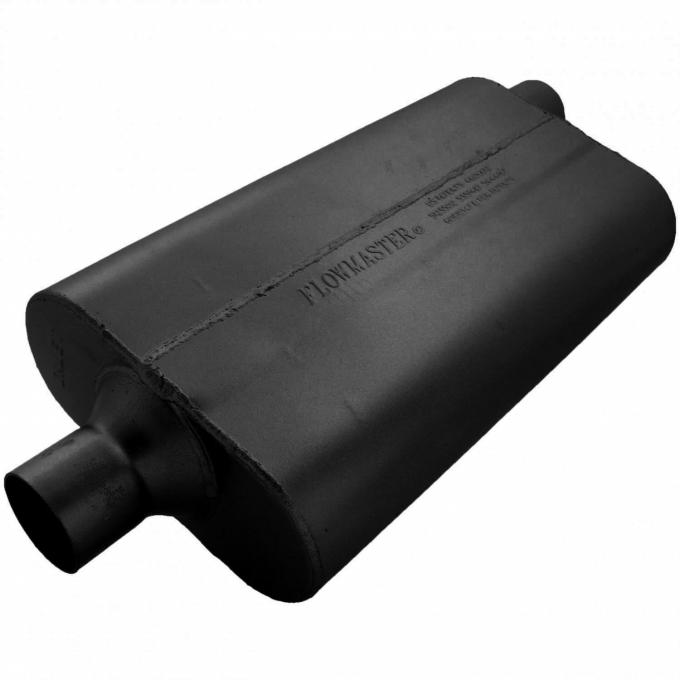

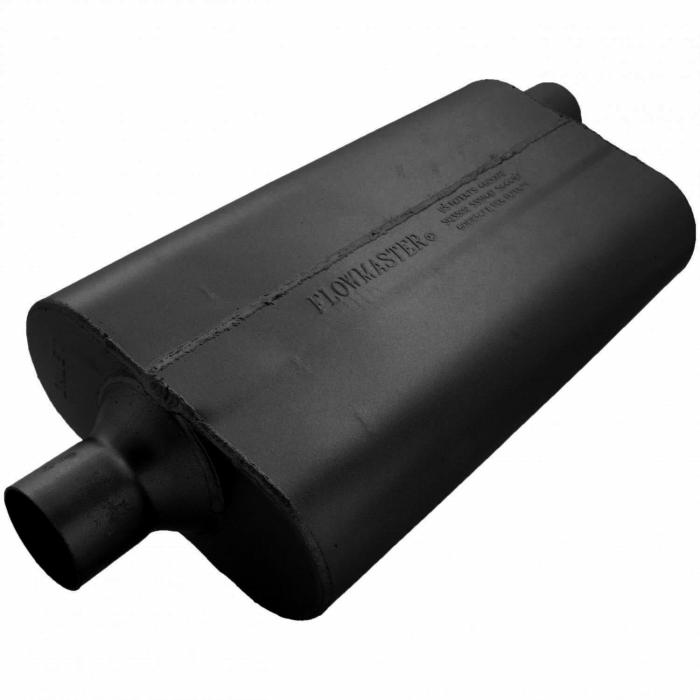

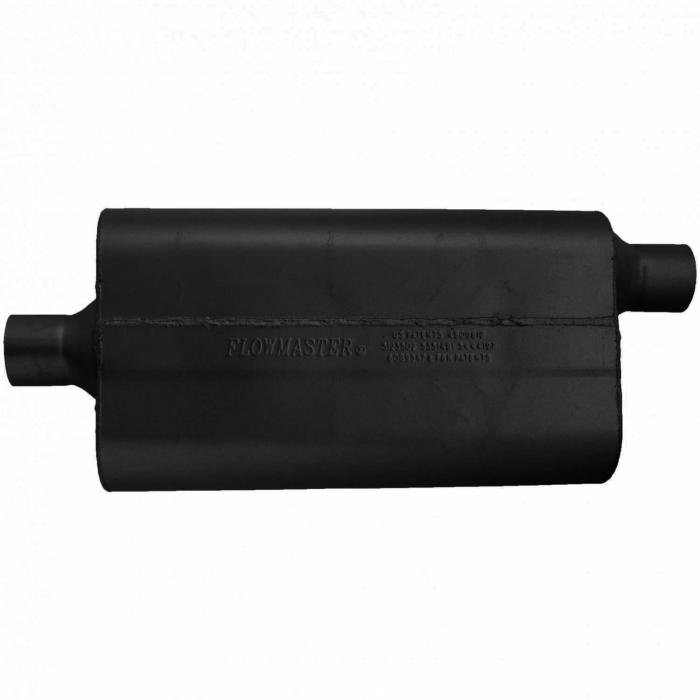

Flowmaster 50 Series™ Delta Flow Muffler 942452

Flowmaster 50 Series™ Delta Flow Muffler 942452
Flowmaster 50 Series™ Delta Flow Muffler 942452Flowmaster 50 Series™ Delta Flow Muffler 942452
$181.99 ea
NEWARRIVING SOONEstimated Ship Date 08/11/2021 (If Ordered Today)64 available from HOLLEY PERFORMANCE PRODUCTS as of 07/25/2021
Model: 3024402
Select a Vehicle or refer to the Vehicle Fitment Tab below to verify that this part fits your vehicle.
STANDARD
DELIVERY
STORE PICKUP
[More Info]

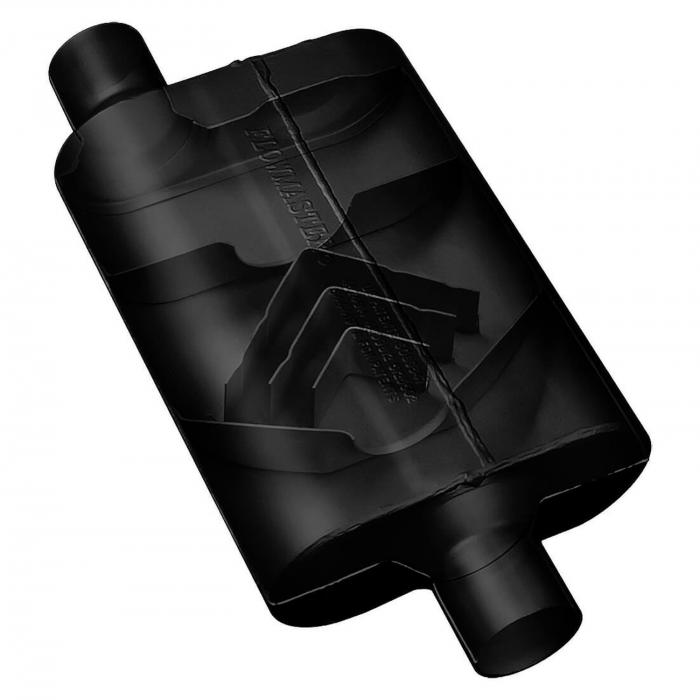

The three chamber design utilizes Flowmaster's patented Delta Flow technology along with an internal tuning chamber to reduce sound inside the vehicle. Provides the same performance and exterior tone characteristics as the two chamber, but with less interior resonance. Constructed of 16 gauge aluminized steel and fully MIG welded for maximum durability.
Features:
  • Durable Fully Welded 16ga Aluminized Steel
  • 3 Year Limited Warranty
  • Mild to Moderate Exterior Exhaust Tone
  • Minimal Interior Resonance
  • Excellent Choice For Street Rods Cars and Trucks
  • Improved HP/TQ and Potential Mileage Improvement
  • Race Proven Patented Delta Flow® Technology
  • Premium Flowmaster Quality
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
Installation Notes:
Universal Muffler - Some adaptation may be required.

Downloads:

Download Name File Size
fm_warranty_general.pdf88.58KB
FM_Warranty_General.pdf88.58KB
NAFTA_COO-2013.pdf105.94KB

Videos:

Vehicle Fitment:

The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
Make Model Years Engine Fitment Notes
Dodge Neon 1995 2.0L / 122 / L4 2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Dodge Neon 1996 2.0L / 122 / L4 2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Dodge Neon 1997 2.0L / 122 / L4 2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Dodge Neon 1998 2.0L / 122 / L4 2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Dodge Neon 1999 2.0L / 122 / L4 2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1984 2.5L / 150 / L4
2.8L / 173 / V6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1985 2.5L / 150 / L4
2.8L / 173 / V6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1986 2.5L / 150 / L4
2.8L / 173 / V6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1987 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1988 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1989 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1990 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1991 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1992 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1993 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1994 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1995 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1996 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1997 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Cherokee 1998 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1987 2.5L / 150 / L4
4.2L / 258 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1988 2.5L / 150 / L4
4.2L / 258 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1989 2.5L / 150 / L4
4.2L / 258 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1990 2.5L / 150 / L4
4.2L / 258 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1991 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1992 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1993 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1994 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required
Jeep Wrangler 1995 2.5L / 150 / L4
4.0L / 242 / L6
2.25 in. Center Inlet/Offset Outlet; Case Dimensions 4 in. x 9.75 in. x 17 in.; 23 in. Overall Length; Aluminized Steel
Not Direct Fit-Some Adaptation Required

Specifications:

Automotive Item Grade High Performance
Body Height 4.000 in.
Body Height (in) 4
Body Length 17.000 in.
Body Length (in) 17
Body Width 9.750 in.
Body Width (in) 9.75
California Proposition 65 Required No
Color Black
Emission Code 5
Finish Paint
Fitment Universal
Inlet Connection Type Pipe
Inlet Diameter 2.250 in.
Inlet Diameter (in) 2.25
Inlet Inside Diameter 2.250 in.
Inlet Outside Diameter 2.250 in.
Inlet Position Center
Inlet Type Single Center
Main Piping Diameter 2.250 in.
Material Aluminized Steel
Mount Type Uses New Hangers (Not Included)
Muffler Series 50 Series Delta Flow
Muffler Type Reflection
Outlet Connection Type Pipe
Outlet Diameter 2.500 in.
Outlet Diameter (in) 2.25
Outlet Outside Diameter 2.250 in.
Outlet Position Offset
Outlet Type Single Center Outlet
Overall Length 23.000 in.
Overall Length (in) 23
Part Type Exhaust Muffler
Reversible No
Shape Oval
Sound Level Moderate
Tip Quantity 0
Type of Muffler Chambered
Vehicle Type 4/6 CYL Engine
Warranty Time 36 Months
