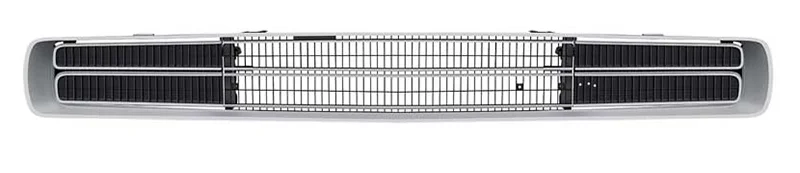

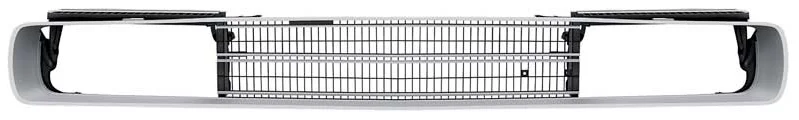

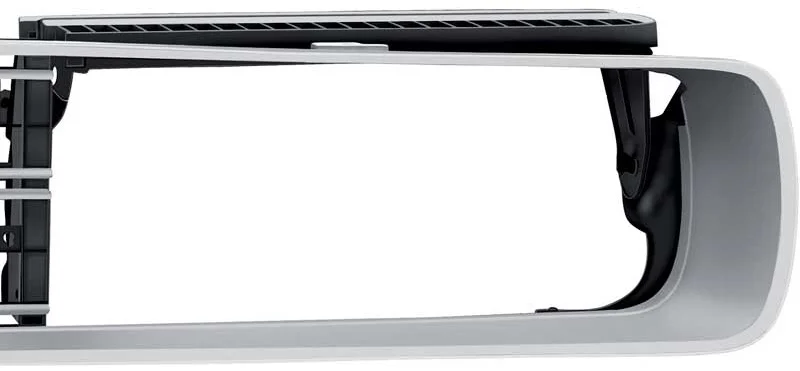

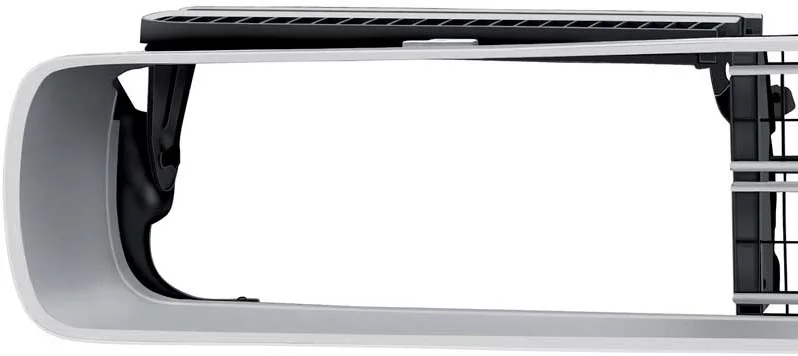

Reproduction of the 1970 Dodge Charger grill and headlamp door assembly for models with concealed headlamps. Manufactured in high-pressure injection-molded plastic and supplied with OE-style stamped steel headlamp door brackets. Headlamp door assemblies are manufactured in stamped steel with the injection molded plastic texture riveted in place. Plastic texture on each door is molded in black plastic and painted argent silver in the proper accent areas.
Each door comes mounted with a 2" slotted rod that acts as a pivot for the headlamp door. Phillips head mounting screw and circlip secures the crank rod to the steel bracket on the grille assembly. The assemblies come with the assorted hardware including (2) headlamp door stop adjusting screws, (4) headlamp door rubber bumpers, (2) small plastic bushings, (2) large plastic bushings for headlamp door pivot points, (2) circlips for headlamp pivot, (2) headlamp door mounting bolts, and (2) nuts with integral washers. Inner headlamp "L" brackets are also included, manufactured in steel just like the factory Mopar item.
This complete assembly consists of over 25 different parts partially assembled for easy bolt-on installation. Kit includes 46-piece grill installation hardware set with J-Nuts, bolts, screws, nuts, and plastic washers to make installation more convenient.
Auto Metal Direct is a team of true car guys with years of experience in sheet metal reproduction, car restoration and paint/body work. We believe that quality is not subjective! Our mission is to provide the best customer experience for the Ford, Mopar and GM classic car markets - both in products and in service.
Our panels are made from proper gauge steel and include all correct-as-original clips, tabs, flanges, bends and seams. Each time a prototype body panel comes off of a new tooling, we test fit it on a car. The marked up prototype is then used to change and improve the tools, and a new prototype is produced. This procedure might be repeated multiple times but, once the part is finally approved, you can be assured of a quality part.
| Make | Model | Years |
| Dodge | Charger | 1970 |
| Brand | OER |
| Height | 14 in |
| Length | 73.5 in |
| Weight | 24 lbs |
| Width | 13 in |
