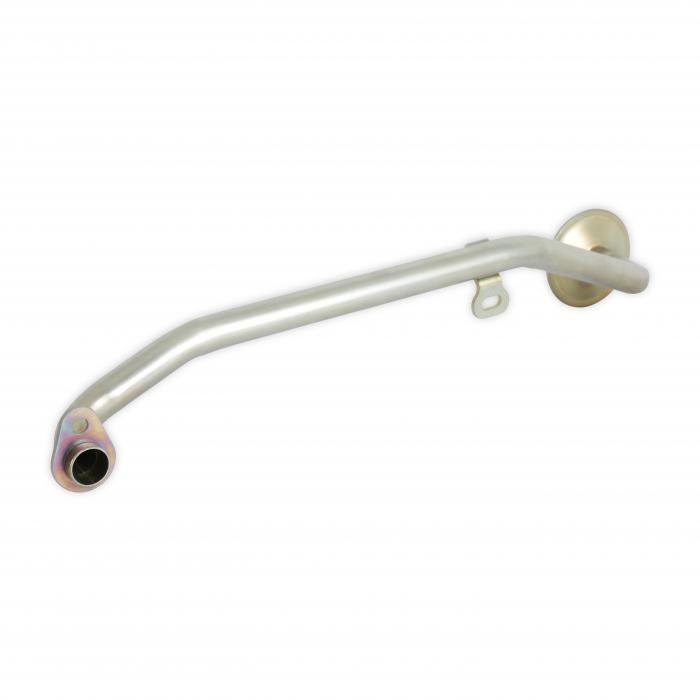

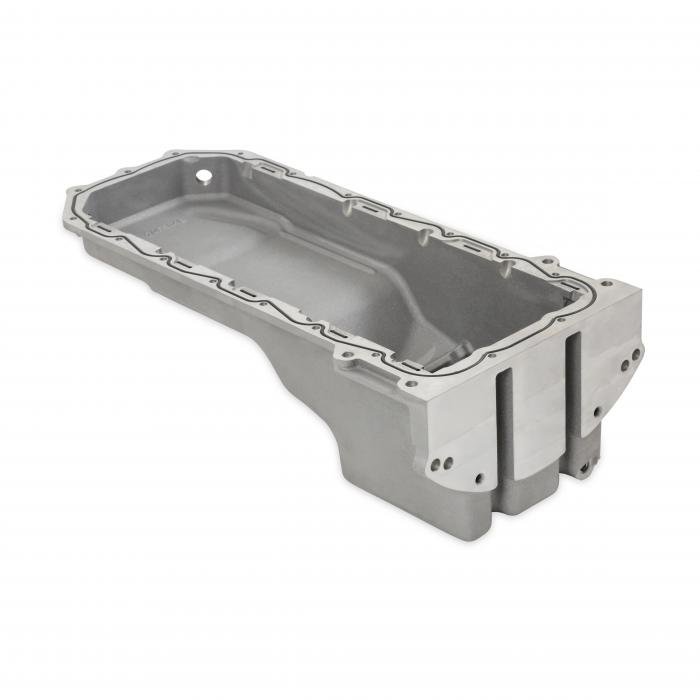

Mopar's popular Gen III Hemi engines are ideal for swapping into many trucks since they are durable, reliable, and make great power. The factory oil pans on these engines usually don't fit and hang too low for your swap. These new cast aluminum oil pans (Patent Pending) fit 1972-1993 Dodge D100/D150/W100/W150, 1987-2004 Dodge Dakota, 1974-1993 Ramcharger, and 1974-1981 Trailduster. The cast aluminum construction & integrated windage tray on the oil pans combined with o-ring sealing provide an attractive leak-free solution for your engine swap. Complete oil pan kit that includes all the parts needed for installation (i.e., oil pan, pickup assembly, o-ring seal, windage tray, baffling & mounting bolts).
Features:
- Most factory cast aluminum oil pans on Gen-III Hemi engines don't fit or hang too low for engine swaps

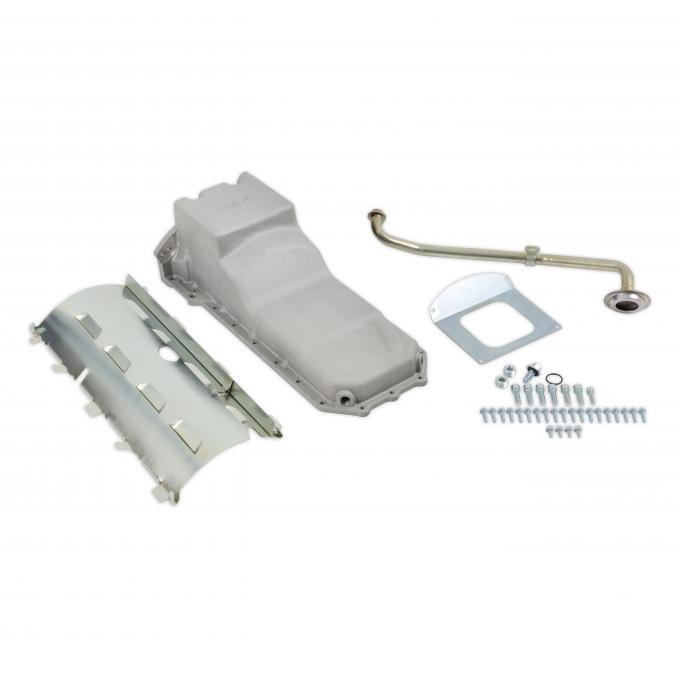

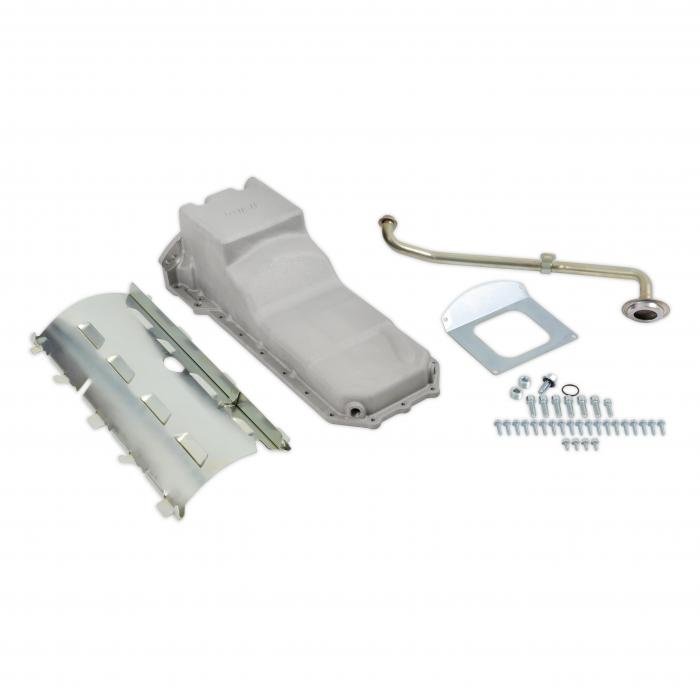

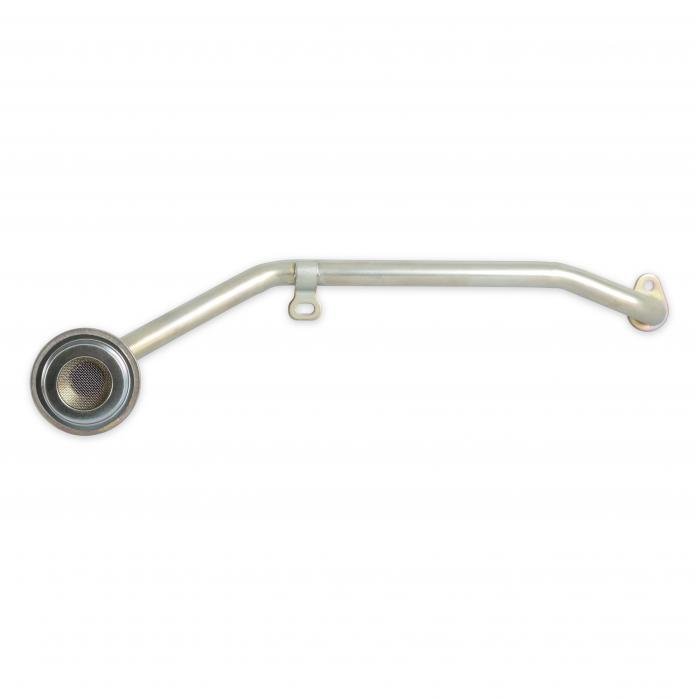

- Complete oil pan kit with includes the oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts – no extras that must be purchased separately

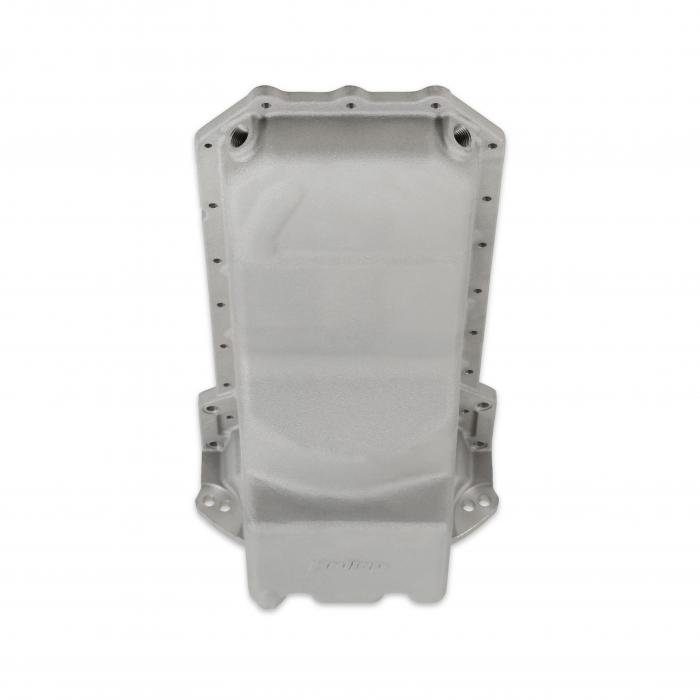

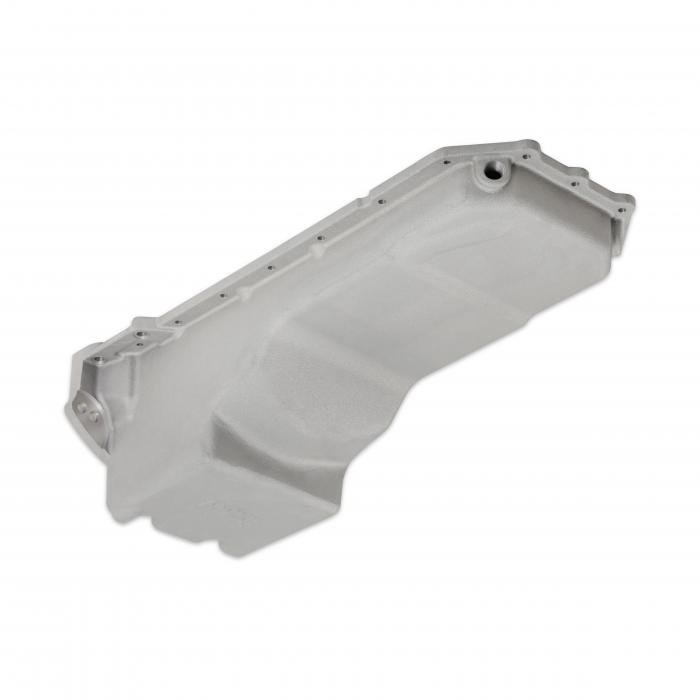

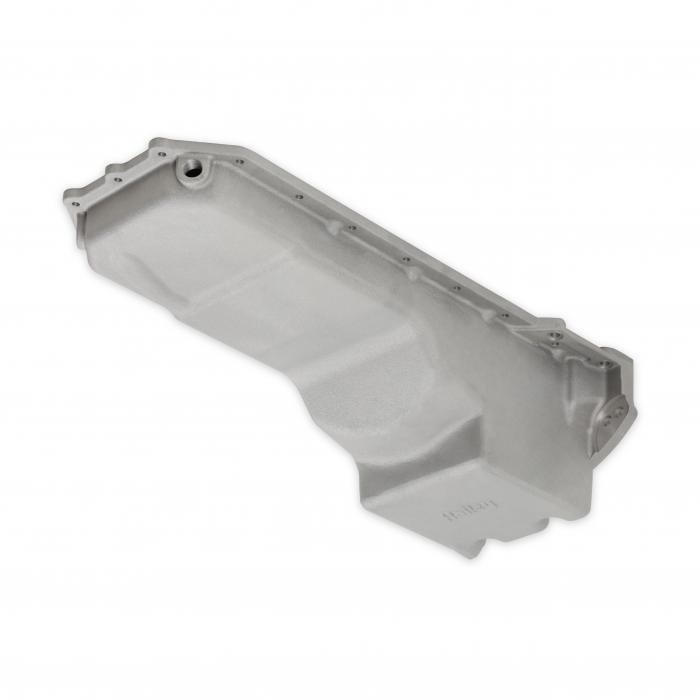

- Cast aluminum rear-sump engine swap oil pan
- Unique O-ring seal to block with captured windage tray (patent pending)

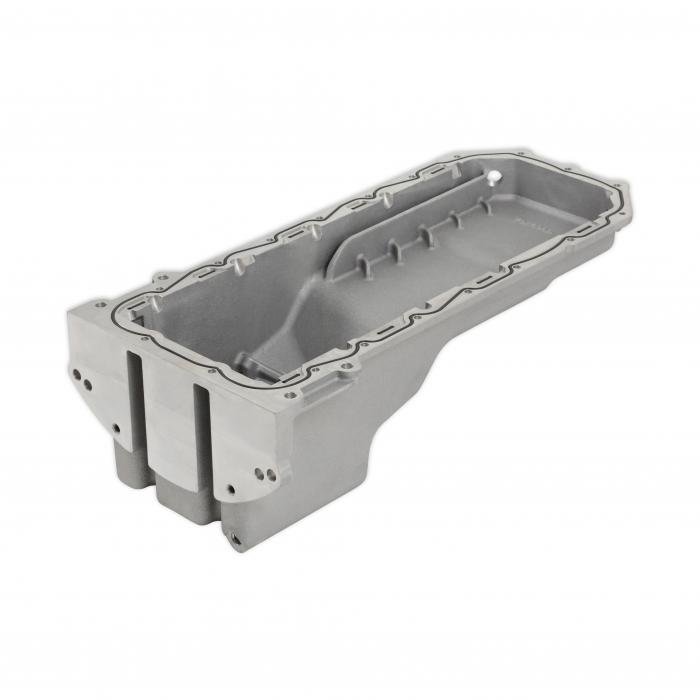

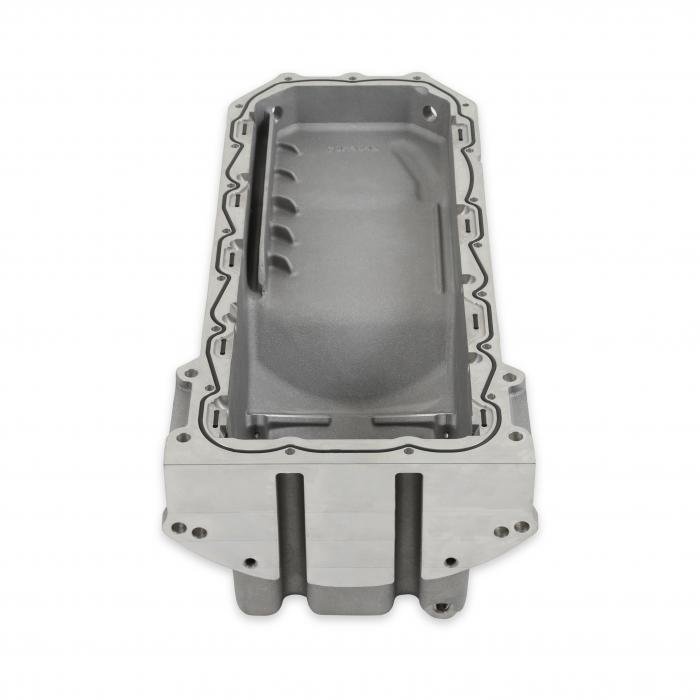

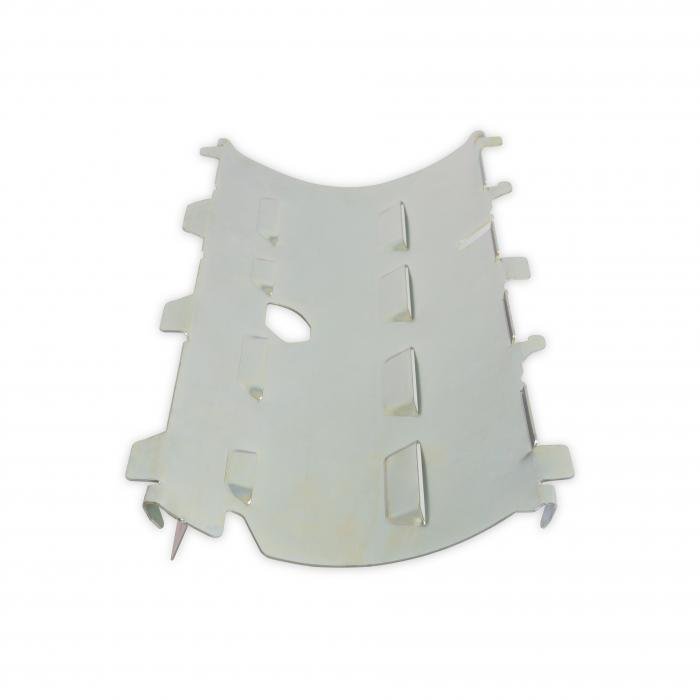

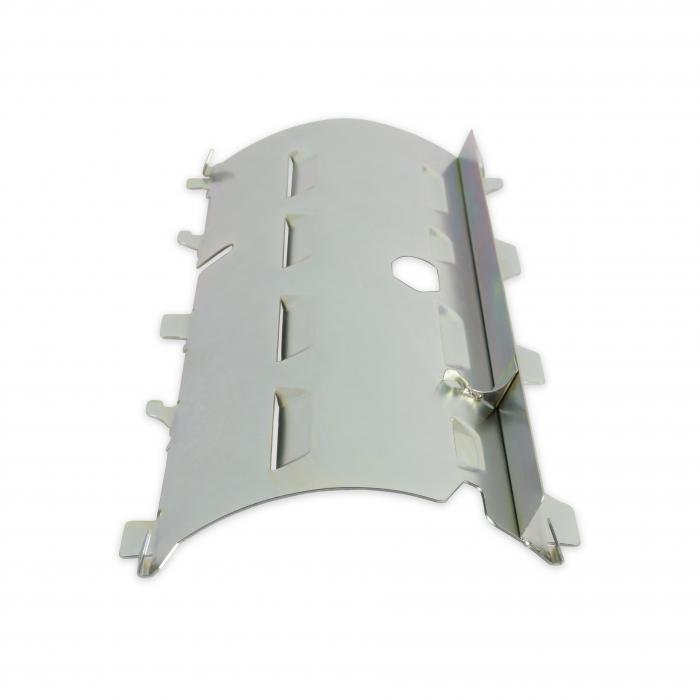

- Integrated windage tray & baffle to control oil (fits up to 4.06-inch stroke)
- Choose from natural as-cast aluminum or black finish
- Includes two 1/2-inch NPT oil return ports to provide a convenient oil return for turbochargers (one port on each front corner)
- Part # 302-76 (or 302-76BK black) fits early engines with variable valve timing (VVT) 2009 & up 5.7L, 2011 & up 6.4L engines
- Fits 1972-1993 Dodge D100/D150/W100/W150 trucks, 1987-2004 Dodge Dakota, and 1973-1987 GM C10 Trucks
- Works with most factory & aftermarket dipsticks
- Patent Pending
- Integrated lower support bolts engine block to transmission or bellhousing for additional driveline strength and support while keeping dirt and debris out of driveline components
- Covers the lower portion of the bell-housing – to keep dirt out of the bell-housing or transmission
Most engines come from the factory with a stud in the block that is reused to mount the oil pickup. If you don't have this stud it can be purchased from Mopar - part number 06513100AA. Recommended Dipstick: Any dipstick from a Dodge or Ram truck that was initially equipped with a Gen III Hem engine is compatible with this oil pan. These dipsticks mate to the engine block dipstick port. Note: Fitment is not guaranteed when using aftermarket exhaust. The oil return ports on the front corners of the oil pan are no longer machined (the bosses are still there & can be drilled and tapped for these ports - if needed).
Installation Notes:
Most engines come from the factory with a stud in the block that is reused to mount the oil pickup. If you don't have this stud it can be purchased from Mopar - part number 06513100AA. Recommended Dipstick: Any dipstick from a Dodge or Ram truck that was initially equipped with a Gen III Hem engine is compatible with this oil pan. These dipsticks mate to the engine block dipstick port. Note: Fitment is not guaranteed when using aftermarket exhaust. The oil return ports on the front corners of the oil pan are no longer machined (the bosses are still there & can be drilled and tapped for these ports - if needed).
About Holley Performance Products
Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Submodel |
Years |
Fitment Notes |
| Dodge |
D100 Pickup |
Base |
1972 - 1974 |
Hemi Swap Gen III |
| Dodge |
D100 |
Adventurer |
1978 - 1980 |
Hemi Swap Gen III |
| Dodge |
D100 |
Base |
1975 - 1980 |
Hemi Swap Gen III |
| Dodge |
D100 |
Club Cab |
1977 - 1980 |
Hemi Swap Gen III |
| Dodge |
D100 |
Custom |
1975 - 1989 |
Hemi Swap Gen III |
| Dodge |
D100 |
Estacas |
1979 - 1980 |
Hemi Swap Gen III |
| Dodge |
D100 |
Warlock II |
1979 |
Hemi Swap Gen III |
| Dodge |
D100 |
Warlock |
1976 - 1978 |
Hemi Swap Gen III |
| Dodge |
D150 |
Adventurer |
1982 - 1988 |
Hemi Swap Gen III |
| Dodge |
D150 |
Base |
1977 - 1993 |
Hemi Swap Gen III |
| Dodge |
D150 |
Club Cab |
1981 - 1988 |
Hemi Swap Gen III |
| Dodge |
D150 |
Equipado |
1982 |
Hemi Swap Gen III |
| Dodge |
D150 |
Estacas |
1982 - 1988 |
Hemi Swap Gen III |
| Dodge |
D150 |
Li'l Red Express |
1978 - 1979 |
Hemi Swap Gen III |
| Dodge |
D150 |
Miser |
1982 - 1983 |
Hemi Swap Gen III |
| Dodge |
D150 |
RAM |
1982 |
Hemi Swap Gen III |
| Dodge |
D150 |
S |
1990 - 1991 |
Hemi Swap Gen III |
| Dodge |
Dakota |
Base |
1987 - 2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
LE |
1987 - 1993 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
R/T |
1998 - 2003 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
SE |
1987 - 1991 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
SLT Plus |
2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
SLT |
1994 - 2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
SXT |
2002 - 2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
S |
1990 - 1993 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
Shelby |
1989 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
Sport Plus |
2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
Sport |
1988 - 2004 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Dakota |
WS |
1994 - 1996 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Ramcharger |
Base |
1974 - 1993 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Ramcharger |
Canyon Sport |
1991 - 1993 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Ramcharger |
Royal SE |
1981 - 1993 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
Ramcharger |
SE |
1975 - 1980 |
Hemi Swap Gen III; Rear Wheel Drive |
| Dodge |
W100 Pickup |
Base |
1972 - 1974 |
Hemi Swap Gen III |
| Dodge |
W100 |
Custom |
1975 - 1989 |
Hemi Swap Gen III |
| Dodge |
W150 |
Base |
1977 - 1993 |
Hemi Swap Gen III |
| Dodge |
W150 |
S |
1990 - 1991 |
Hemi Swap Gen III |
| Plymouth |
Trailduster |
Base |
1974 - 1981 |
Hemi Swap Gen III; Rear Wheel Drive |
