Holley Small Block Chevy Mid-Mount Complete Accessory System 20-240BK

Holley Small Block Chevy Mid-Mount Complete Accessory System 20-240BK
Holley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BKHolley Small Block Chevy Mid-Mount Complete Accessory System 20-240BK
$3,327.99 ea
NEWOUT OF STOCK
Model: 3992060
OVERSIZE 1

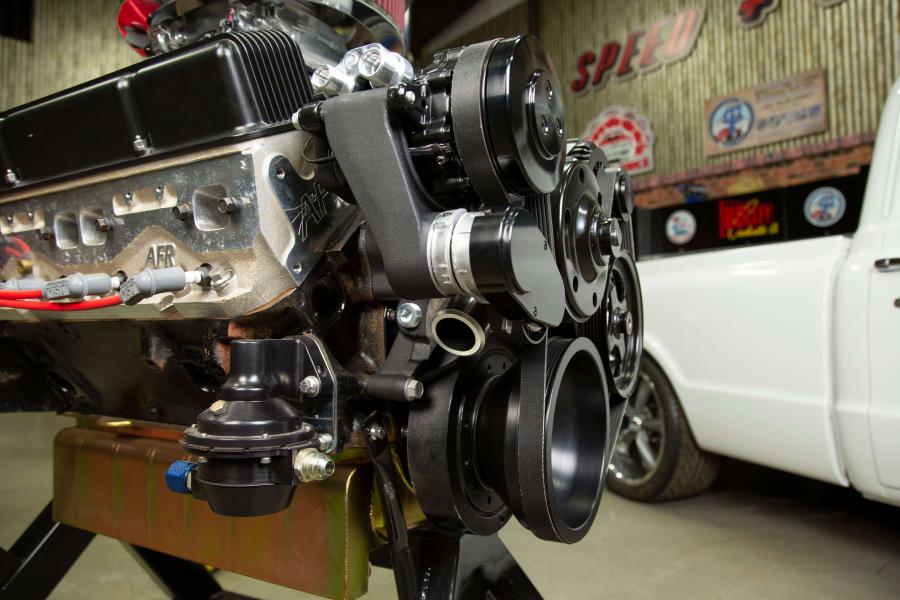

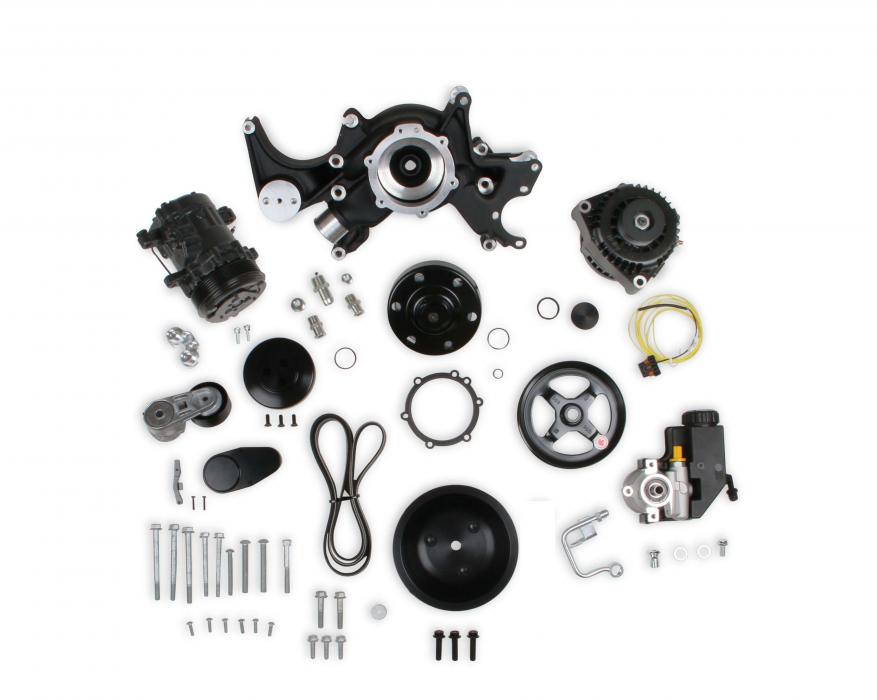

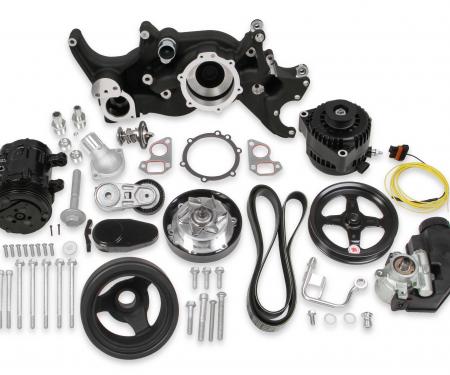

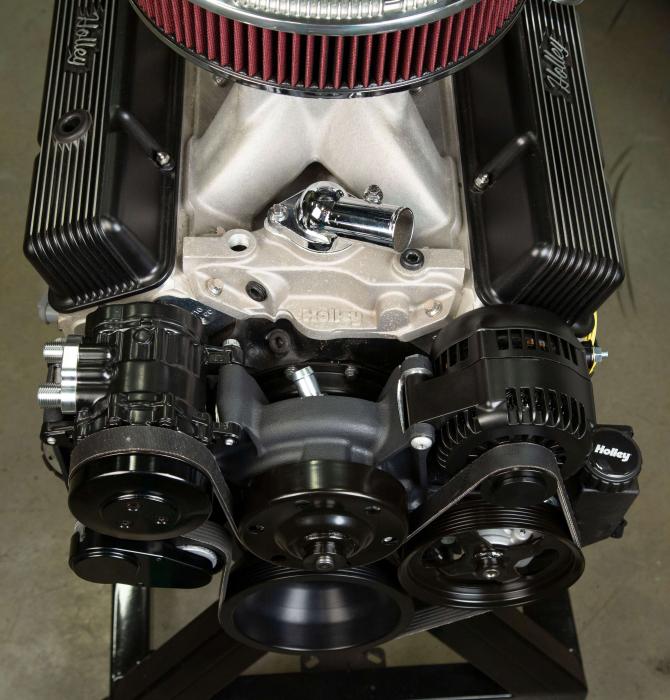

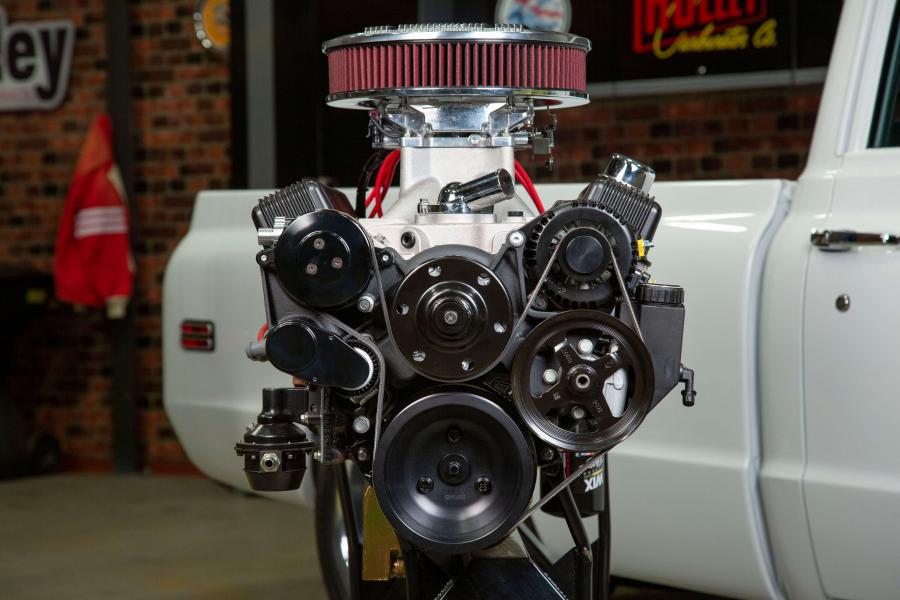

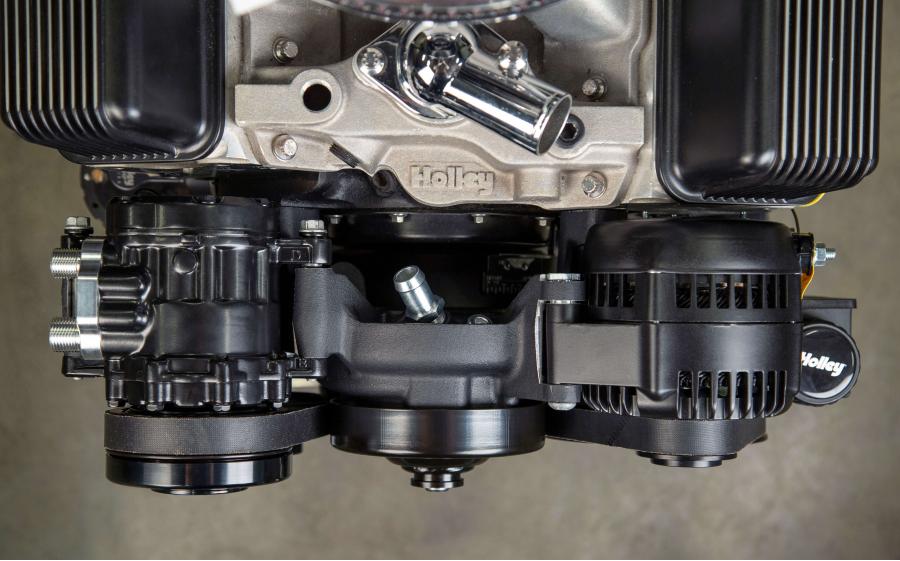

Holley's Mid-Mount accessory drives are now available for your small block Chevrolet engines! The revolutionary system does what no other accessory bracket system has done… GETS RID OF THE BRACKETS! The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives. At the heart of the system is a "bracketless" design, where the accessories bolt directly to the water pump for a clean, integrated form. The design offers superb engine visibility to show off your horsepower, not your accessories. The Holley designed alternator is just as innovative. This premium alternator utilizes 6-phase technology as found on the C7 Corvette. The water pump also shares its design efficiencies with that of the C7 Corvette. The compact and reliable SD7 A/C compressor and Type II P/S pump with baffled reservoir are also integrated. The water pump design incorporates optional side or top heater ports. The top thermostat bypass and heater ports are recessed into the manifold. So if you don't need them, you don't see them! When we say "complete", we mean complete. The Mid-mount system comes with everything you need. All accessories are included; the water pump, A/C compressor, Alternator, and P/S pump with reservoir. All pulleys and the belt are supplied. Even A/C line adapter, heater hose adapters, power steering to -6 AN hardline, and the alternator plug/harness are included. Easy assembly was a priority during the entire development of this accessory solution. Color graphical instructions walk you through every step of the ultra-easy installation. Patent - www.holley.com/patents/
Features:
  • The Mid-Mount complete accessory system has all accessories pulled in tighter than other accessory drives.
  • Bracketless accessory mounting with ultra-easy assembly
  • O-ring seal to engine

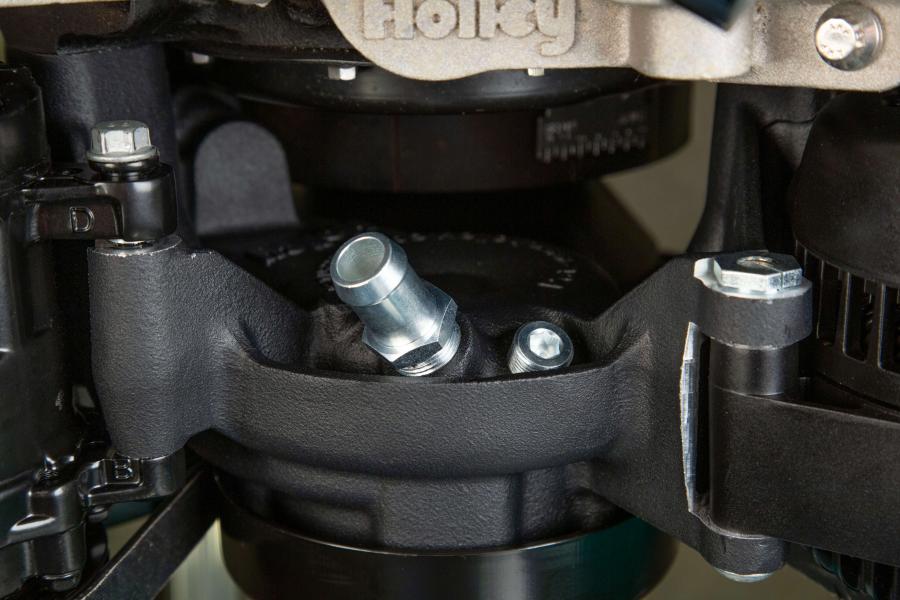

  • Hidden thermostat bypass and heater hose ports with NPT line adapters included
  • LT1 style premium alternator
  • LT1 style water pump design

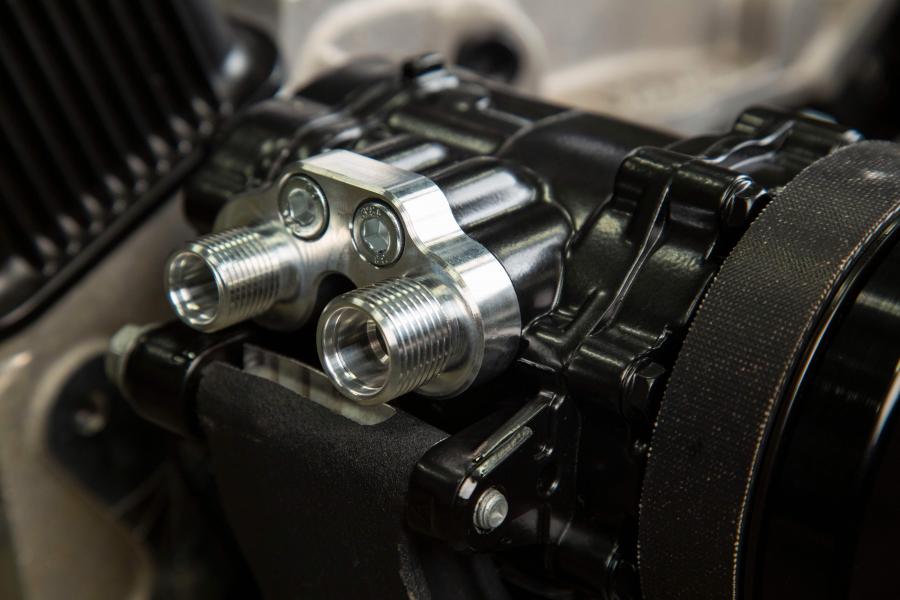

  • Compact SD7 A/C compressor with line adapter included

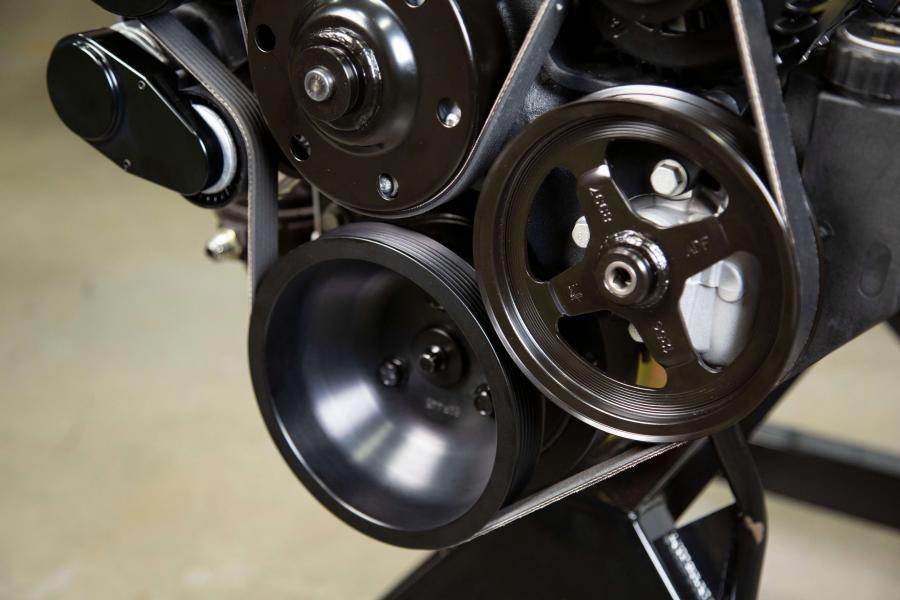

  • Type II power steering pump with baffled reservoir
  • P/S adapter hardline to AN -6 adapter included
  • OE pulley ratios for optimal accessory performance
  • Available in natural and black finishes
  • Billet alternator, tensioner, and compressor pulley covers
The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101
Installation Notes:
The power steering pump included can be used Hydroboost systems. Please refer to the flow specs on part number 198-101
About Holley Performance Products

Holley has been the undisputed leader in fuel systems for over 100 years. Holley carburetors powered every Monster Energy NASCAR Cup team and nearly every NHRA Pro-Stock champion for four decades. Now, Holley EFI products power these cars and are dominating the performance world. Holley products for GM's popular LS engine are dominating the LS scene as well. Holley's products also include performance fuel pumps, intake manifolds and engine dress-up products for street performance, race and marine applications. As a single solution or partnered with products from other Holley companies we can give you the edge you need over the competition!

Downloads:

Download Name File Size
199r11820.pdf3.63MB

Videos:

Specifications:

A/C Compressor Included Yes
A/C Compressor Type SD7
Accessory Drive Style Mid Mount
Alternator Amperage 150
Alternator Included Yes
Application Chevrolet Small Block
Belt Included Yes
Choose Your Part Accessory Drive Kits
Damper Included No
Damper Style Factory
Emission Code 5, 3
Engine Small Block Chevy
Finish Black
Inlet Size 35.4mm/1.4"
Material Cast Aluminum
Output 150 Amps
Part Type Accessory Drive Component Mount Set
Power Steering Hardline Included Yes
Power Steering Pulley Included Yes
Power Steering Pump Included Yes
Power Steering Reservoir Included Yes
Product Type Accessory Drive Kits
Pulley Style Serpentine
Tensioner Included Yes
Thermostat Included No
Warranty Limited 90 Day
Water Neck Included Yes
Water Pump Included Yes
Water Pump Pulley Included Yes
