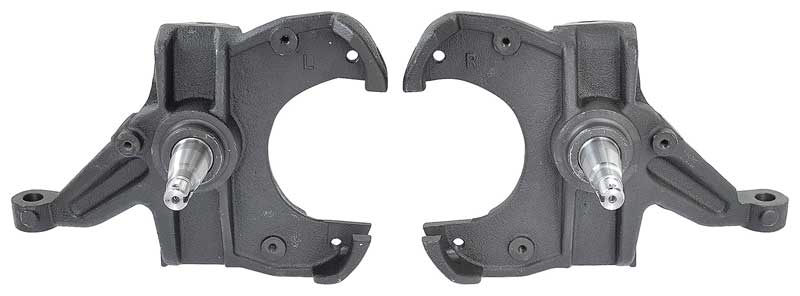

Reproduction of the original 2.5" drop spindles designed to lower your Chevrolet or GMC truck while still maintaining the factory ride quality. Each drop spindle is manufuctured to factory specs. The stock ball joints and tie rod ends will bolt right up. Includes RH and LH drop spindles only. Sold in pairs. Refer to list below for associated parts, sold separately.
Compatability List:These Spindles Will Work With The Following Associated Items, Sold Separately:ES409L Outer Tie Rods (LH or RH) - 2 Required.
WB60 Inner Wheel Bearing (LH or RH) - 2 Required.
WB30 Outer Wheel Bearing (LH or RH) - 2 Required.
K9142 Spindle Nut and Cotter Pin (LH or RH) - 2 Required.
BW2 Front Spindle Nut Washer (LH or RH) - 2 Required.
RC4213 Caliper (RH side).
RC4214 Caliper (LH side).
CB2089DL 5 x 5 Bolt Pattern Drilled and Slotted Rotor (LH side).
CB2089DR 5 x 5 Bolt Pattern Drilled and Slotted Rotor (RH side).
| Make | Model | Years |
| Chevrolet | C10 Panel | 1960 - 1962 |
| Chevrolet | C10 Pickup | 1960 - 1962 |
| Chevrolet | Suburban | 1960 - 1962 |
| Chevrolet | Truck | 1960 |
| Dodge | Truck | 1960 |
| GMC | Suburban | 1960 - 1962 |
| GMC | Truck | 1960 |
| Plymouth | Suburban | 1960 - 1961 |
| Height | 25 in |
| Length | 11 in |
| Weight | 53 lbs |
| Width | 16 in |
