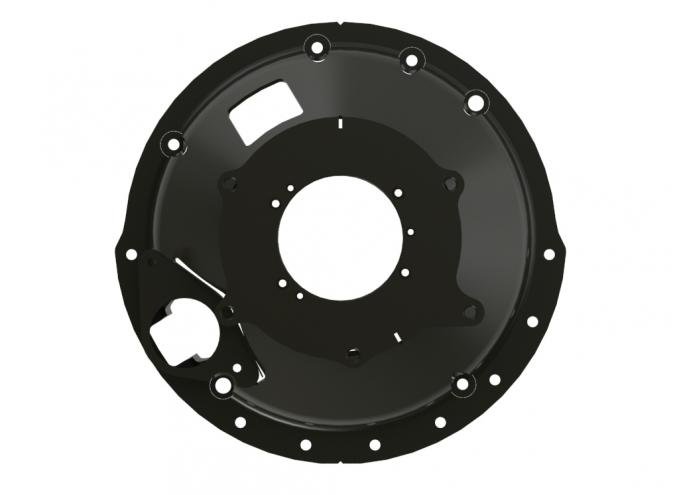

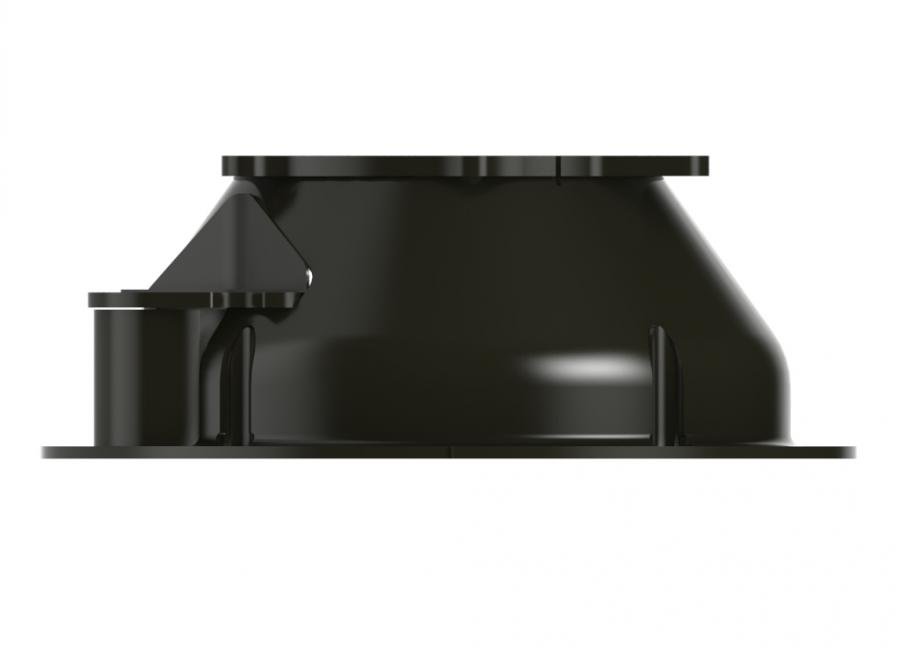

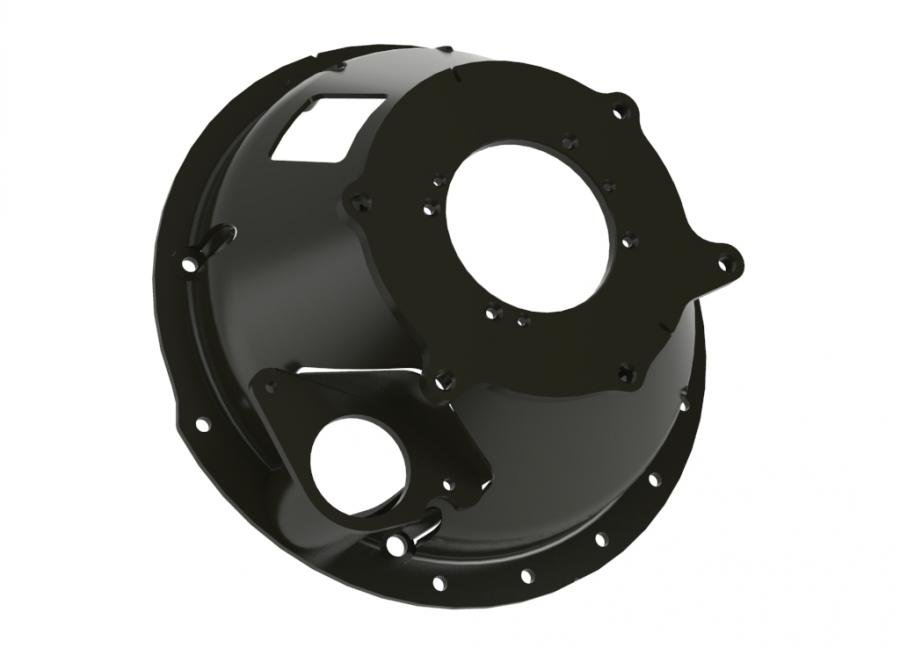

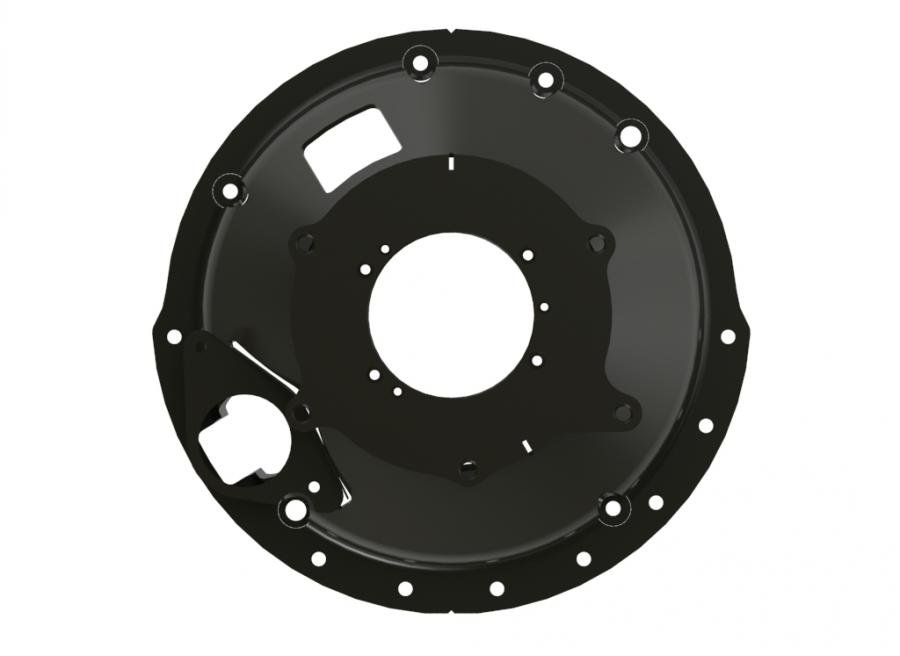

Quick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWA

Name: Quick Time Bellhousing, Mazda 13B or 20B Rotary Engine RM-4093MWA
Brand: Quick Time
SKU: 4014843
Price: 2267.99 CAD
Availability: InStock

$2,267.99 ea

NEWARRIVING SOONEstimated Ship Date 03/16/2026 (If Ordered Today)16 Available from HOLLEY PERFORMANCE PRODUCTS as of 03/02/2026

Model: 4014843

0 reviewsWrite a Review Add to Wish List

Supplier has not provided any fitment data for this product.

CALL US
855.444.6872

Description Video Specifications Reviews (0) Product Q&A Related Products

Built from high grade steel - Work hardens to over 80,000 PSI strength. Over 2 times the strength of any other steel bellhousing.

Features:

Quick Time Bellhousings are the most accurate bellhousings available due to our unique manufacturing processes
QuickTime cones are spun, not rolled or stamped. This allows Quick Time Bellhousings to be the most dimensionally stable Bellhousings available
Built from high grade steel – Work hardens to over 80,000 PSI strength. Over two times the strength of other steel bellhousings
100% built in the USA
Patent on 16 points of Bellhousing Design & Process

Full Engine Plate and Grade 8 Bolts Included Requires use of FC3S, 85-92 Mazda RX7 starter

Installation Notes:

Full Engine Plate and Grade 8 Bolts Included Requires use of FC3S, 85-92 Mazda RX7 starter

Videos:

Specifications:

Clutch Diameter	7.25 inch
Clutch Operation	Hydraulic
Color	Black
Emission Code	5
Engine	Rotary, 13B, 20B
Engine Make	Mazda
Flywheel	125 Tooth
Height	6.3 inch
Height (in)	6.3
Make	Mazda
Material	Steel
Part Type	Transmission Bell Housing
Patented	yes
Product Type	Bellhousing
SFI Approved	Yes
SFI Certification	6.1
Trans. Bore Diameter	4.685 inch
Transmission	Bert Racing, Muncie, TKX GM, TKO 500/600 GM, Falcon, Jerico, Richmond, Saginaw
Transmission Type	Manual
Weight	36.0000
Weight (lb)	36
