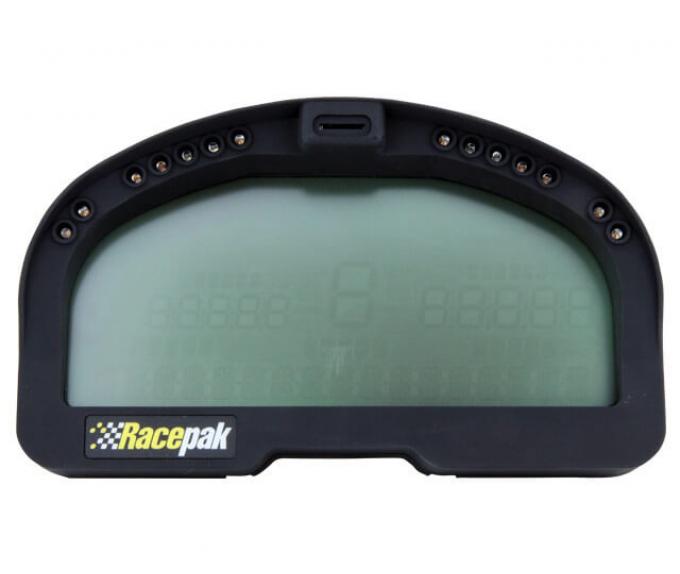

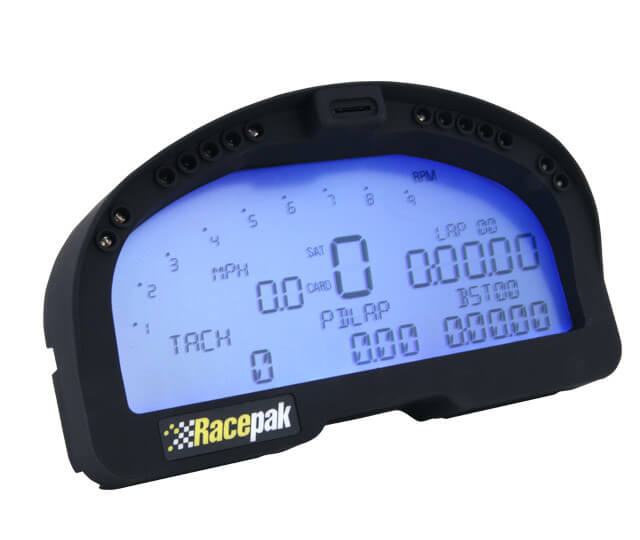

The IQ3 Logger Dash combines a 32 channel data logger with a complete display dash. This eliminates the need for an external data recorder and simplifies wiring complexity. The display features four user-definable pages of data with programmable shift and warning lights. Data is collected on a front-mounted MicroSD card for convenience. Internal GPS speed measurement eliminates the need for added wheel sensors. The 620-KT-IQ3LDPL4 edition Logger Dash is optimized for 4WD pulling vehicles. The box includes: IQ3 Data logger dash, universal sensor module, power/ground/engine RPM harness, 48 in. V-Net extension cable, 512mb microSD memory card, throttle position sensor, GPS antenna and cable, RPM sensors, programming cable and DatalinkII software and installation manual. Specifications: 32 total channels of data / 24 programmable sensor inputs on 4 pages / internal GPS / programmable shift and warning lights / gear indicator. Dimensions: 7.30 in. (W) x 4.10 in. (H) x 2.10 in. (D) (18.54 cm. x 10.41 cm. x 5.33 cm.) / 3 lb. (731.4 g)
Features:
- Combines 32 Channel Data Logger w/Complete Display Dash
- Features Four User-Definable Pages Of Data
- Features Programmable Shift And Warning Lights
- Eliminates The Need For Added Wheel Sensors
- Optimized For 4WD Pulling Vehicles
- Includes IQ3 Data Logger Dash / Sensor Module / More Parts
- 24 Programmable Sensor Inputs On 4 Pages
Holley Performance Emission Code 5: This part is legal for sale or use on Emissions Controlled Vehicles; Uncontrolled (Non-Emissions Controlled) Vehicles; and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations
About Racepak
Our unwavering goal to produce reliable, efficient, state of the art data recorders, at a price accessible to professionals and sportsmen alike, and back them with whatever service our customers may need, is as strong today as it was in 1984.
