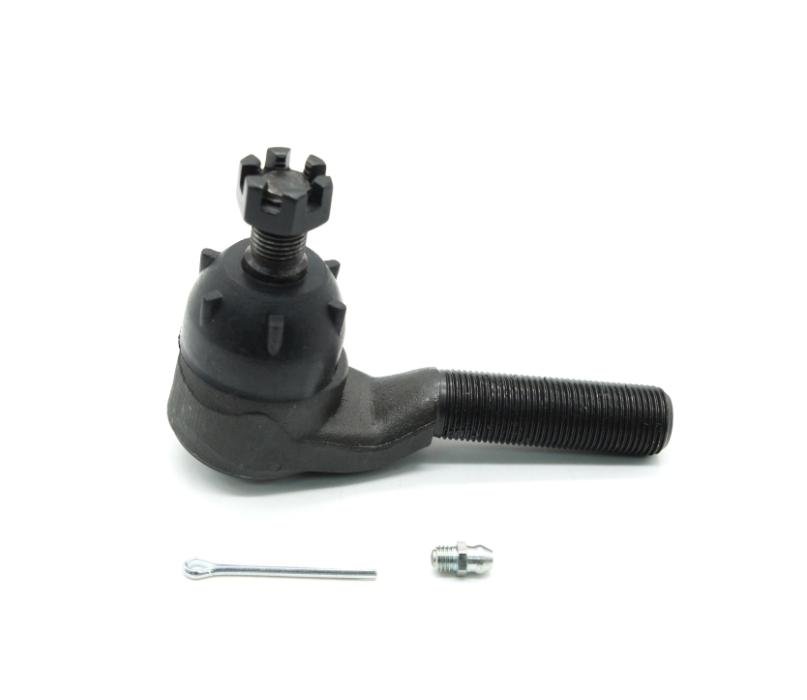

Outer tie rod end for 1957–1964 Chrysler, DeSoto, Dodge and Plymouth passenger cars. This replacement outer tie rod end (11/16"-18 right-hand thread) installs on either right- or left-hand steering arms and features a grease port located on the side of the housing for easy lubrication. Designed to restore steering play, maintain alignment, and provide a safe, durable connection between the steering linkage and the wheel spindle. Constructed from heat-treated steel with a corrosion-resistant finish and a PTFE-lined ball joint for smooth operation and long service life.
Features:
- Fits 1957–1964 Chrysler, DeSoto, Dodge and Plymouth models (outer tie rod end, 11/16"-18 RH thread).
- Right/left-hand application – installs on either side depending on steering arm orientation.
- 11/16"-18 right-hand threaded stud for direct-fit replacement of original equipment.
- Grease port on the side of the housing for convenient lubrication and extended joint life.
- PTFE-lined ball stud and dust boot reduce wear and keep contaminants out.
- Heat-treated steel construction with corrosion-resistant finish for durability.
- Restoration-grade replacement ideal for classic car steering system refurbishment.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes per side
Instructions:
- Park vehicle on level ground, engage parking brake, and loosen front wheel lug nuts slightly.
- Raise vehicle and support securely on jack stands. Remove the front wheel to access the tie rod end.
- Mark the position of the old tie rod end on the tie rod (or count the number of turns) to preserve alignment settings when installing the new part.
- Loosen the jam nut on the inner tie rod and back it off as needed to allow removal of the outer tie rod end.
- Remove the cotter pin (if equipped) and loosen the castle nut or retaining nut on the tie rod end stud.
- Use a tie rod end puller or pickle fork to separate the tie rod end stud from the steering knuckle. Do not use excessive hammering that could damage steering components.
- Unscrew the outer tie rod end from the inner tie rod the same number of turns noted during removal, or until the marked position aligns.
- Thread the new outer tie rod end onto the inner tie rod to the marked position. Tighten the jam nut to secure the assembly.
- Insert the stud into the steering knuckle, tighten the retaining nut to the specified torque for your vehicle, and install a new cotter pin if required.
- Attach the grease gun to the grease port and apply grease until the dust boot slightly expands (do not over-grease).
- Reinstall the wheel, lower the vehicle, and torque the lug nuts to specification.
- Have the vehicle aligned by a professional after installation to ensure proper steering geometry and tire wear.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chrysler |
300 |
1962 - 1964 |
| Chrysler |
New Yorker |
1963 - 1964 |
| Chrysler |
Newport |
1961 - 1964 |
| Chrysler |
Windsor |
1958 - 1961 |
| DeSoto |
DeSoto |
1961 |
| DeSoto |
Fireflite |
1960 |
| DeSoto |
Firesweep |
1957 - 1959 |
| Dodge |
880 |
1963 - 1964 |
| Dodge |
Coronet |
1957 - 1959 |
| Dodge |
Custom |
1957 - 1961 |
| Dodge |
Dart |
1960 - 1961 |
| Dodge |
Lancer |
1957 - 1959 |
| Dodge |
Matador |
1960 |
| Dodge |
Polara |
1960 - 1961 |
| Dodge |
Royal |
1957 - 1959 |
| Dodge |
Seneca |
1960 |
| Dodge |
Sierra |
1957 - 1959 |
| Dodge |
Suburban |
1957 - 1958 |
| Plymouth |
Belvedere |
1957 - 1961 |
| Plymouth |
Custom |
1958 - 1961 |
| Plymouth |
Fleet Special |
1960 - 1961 |
| Plymouth |
Fury |
1957 - 1961 |
| Plymouth |
Plaza |
1957 - 1958 |
| Plymouth |
Savoy |
1957 - 1961 |
| Plymouth |
Sport Wagon |
1960 - 1961 |
| Plymouth |
Suburban |
1957 - 1961 |
