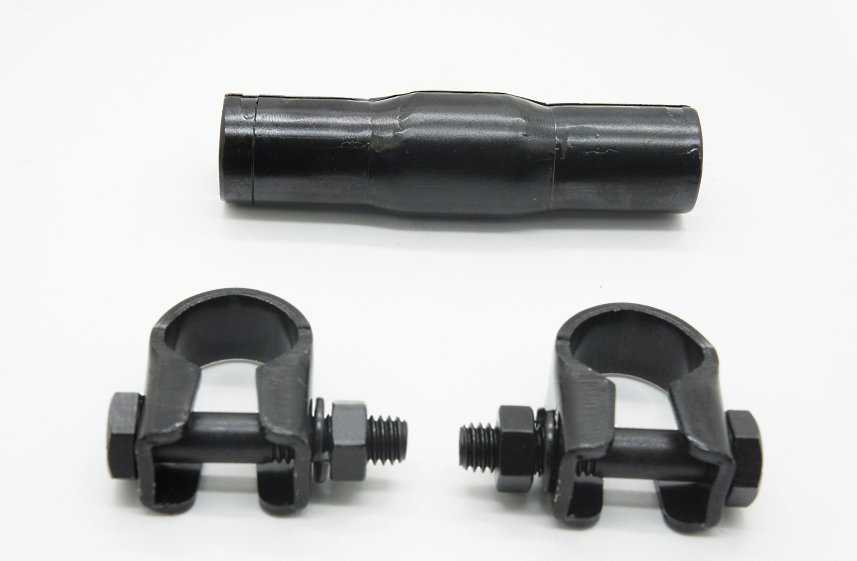

High-strength adjusting sleeve designed for steering and suspension systems on a wide range of passenger vehicles and light trucks from 1966–2018 including Chevrolet, Dodge, Ford, GMC, Jeep, and Mazda models. This 1"-18 UNS threaded sleeve is offered in both right- and left-hand versions to provide precise tie rod length adjustment, alignment correction, and secure connection between rod ends. Crafted from durable alloy steel with corrosion-resistant plating, the sleeve ensures reliable performance under road stress, reduces play, and supports accurate wheel alignment for safer handling and extended component life. Ideal for restoration, repair, or upgrade projects where OEM fit and dependable adjustment are required.
Features:
- Fitment: Fits 1966–2018 Chevrolet, Dodge, Ford, GMC, Jeep, and Mazda models (verify thread and application before ordering).
- Thread Size: 1"-18 UNS thread pitch suitable for many steering and suspension tie rod applications.
- Hand Options: Available in both right-hand and left-hand threads for precise length adjustment during alignment.
- Material & Finish: Made from high-strength alloy steel with a corrosion-resistant finish for longevity.
- Function: Secures tie rod ends and allows fine adjustment of toe settings to reduce tire wear and improve handling.
- Durability: Engineered to resist road vibration, shock loading, and environmental corrosion for long service life.
- Ease of Use: Simple installation with common hand tools; no special equipment required for most applications.
- Application: Perfect for restorations, suspension rebuilds, and repair jobs where correct thread engagement and dependable fastening are essential.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes per side
Instructions:
- Park vehicle on a level surface, engage parking brake, and safely lift the vehicle with a jack; support with jack stands.
- Remove the front wheels to access the tie rod assembly.
- Loosen the jam nut on the existing tie rod adjustment sleeve and separate the outer tie rod end from the steering knuckle using a tie rod separator or pickle fork.
- Unscrew and remove the old adjusting sleeve from the inner or outer tie rod as required.
- Inspect mating threads for damage; clean threads and apply light anti-seize if desired.
- Install the new 1"-18 UNS adjusting sleeve, threading it onto the inner and outer tie rod ends. Ensure you have the correct hand (right or left) for your application so adjustments change length in the desired direction.
- Adjust the sleeve to match the original center-to-center measurement or to approximate toe setting; tighten the jam nut to secure the assembly.
- Reattach the outer tie rod end to the steering knuckle and torque to manufacturer specifications.
- Reinstall the wheel, lower the vehicle, and perform a precise wheel alignment at home with suitable tools or have a professional alignment shop complete the final toe/camber adjustments.
- Check for play and proper torque after a short test drive and re-torque if necessary.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Chevrolet |
C3500HD |
2001 - 2002 |
| Chevrolet |
C3500 |
1991 - 2000 |
| Chevrolet |
K10 Suburban |
1976 - 1980 |
| Chevrolet |
K10 |
1976 - 1980 |
| Chevrolet |
K20 Suburban |
1976 - 1986 |
| Chevrolet |
K20 |
1976 - 1986 |
| Chevrolet |
K30 |
1977 - 1986 |
| Chevrolet |
K5 Blazer |
1976 - 1980 |
| Chevrolet |
V20 Suburban |
1987 - 1988 |
| Chevrolet |
V20 |
1987 |
| Chevrolet |
V2500 Suburban |
1989 - 1991 |
| Chevrolet |
V30 |
1987 - 1988 |
| Chevrolet |
V3500 |
1989 - 1991 |
| Dodge |
Ram 1500 |
1994 - 2001 |
| Dodge |
Ram 2500 |
1994 - 2008 |
| Dodge |
Ram 3500 |
1994 - 2008 |
| Ford |
Bronco |
1966 - 1975 |
| Ford |
E-150 |
2007 - 2014 |
| Ford |
E-250 Econoline |
1988 - 2002 |
| Ford |
E-250 |
2003 - 2014 |
| Ford |
E-300 Econoline |
1969 - 1974 |
| Ford |
E-350 Econoline |
1988 - 1998 |
| Ford |
E-350 Super Duty |
1999 - 2018 |
| Ford |
E-450 Super Duty |
2003 - 2018 |
| Ford |
Explorer |
1991 - 1994 |
| Ford |
F-100 |
1966 - 1975 |
| Ford |
F-250 |
1974 - 1997 |
| Ford |
F-350 |
1985 - 1997 |
| GMC |
C3500 |
1991 - 2000 |
| GMC |
Jimmy |
1976 - 1980 |
| GMC |
K15 Suburban |
1976 - 1978 |
| GMC |
K1500 Suburban |
1979 - 1980 |
| GMC |
K1500 |
1979 - 1980 |
| GMC |
K15 |
1976 - 1978 |
| GMC |
K25 Suburban |
1976 - 1978 |
| GMC |
K2500 Suburban |
1979 - 1986 |
| GMC |
K2500 |
1979 - 1986 |
| GMC |
K25 |
1976 - 1978 |
| GMC |
K3500 |
1979 - 1986 |
| GMC |
K35 |
1977 - 1978 |
| GMC |
V2500 Suburban |
1987 - 1991 |
| GMC |
V2500 |
1987 |
| GMC |
V3500 |
1987 - 1991 |
| Jeep |
Wrangler |
2007 - 2018 |
| Mazda |
Navajo |
1992 - 1994 |
