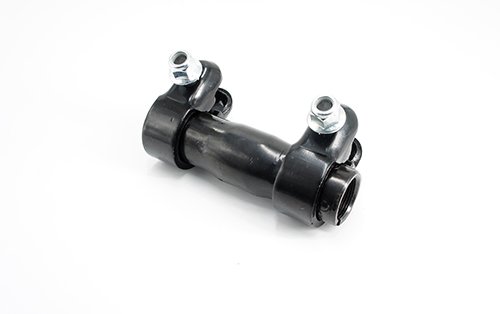

Adjusting sleeve designed to connect the pitman arm to the connecting tie rod on left-hand thread steering assemblies for 1999–2019 Dodge, Ford and Ram trucks. This heavy-duty sleeve provides precise length adjustment for correct wheel alignment and helps eliminate steering play. Built for durability and corrosion resistance, it restores factory steering geometry and secures the tie rod end to the pitman arm for reliable, long-lasting performance.
Features:
- Fitment: 1999–2019 Dodge / Ford / Ram models with left-hand thread pitman arm to connecting tie rod assemblies.
- Left-hand threaded adjusting sleeve for correct orientation with factory steering components.
- High-strength steel construction with corrosion-resistant finish for long service life.
- Allows fine length adjustment to achieve proper wheel alignment and restore steering geometry.
- Helps eliminate steering play, vibration and uneven tire wear.
- Simple replacement part for restoration or repair of worn or damaged tie rod linkages.
Installation / Application:
- Difficulty: 2/5
- Estimated time: 30-60 minutes
Instructions:
- Park vehicle on level ground, engage parking brake and chock rear wheels. Raise the front of the vehicle and support securely on jack stands.
- Remove the front wheel on the side to be serviced for access to the steering linkage.
- Apply penetrating oil to the tie rod end and pitman arm connection. Loosen the jam nut on the tie rod and unthread the tie rod end from the sleeve if present.
- Separate the tie rod end from the pitman arm using a tie rod puller or pickle fork. Take care not to damage the tie rod boot or surrounding components.
- Remove the old adjusting sleeve (if present) and compare thread direction and length to ensure the new left-hand sleeve matches factory specification.
- Thread the new adjusting sleeve onto the tie rod or pitman arm as required. Adjust to approximate length using measurements from the removed part or vehicle service manual.
- Reattach the tie rod end to the pitman arm and tighten to manufacturer torque specification using a torque wrench. Tighten the jam nut to secure the adjustment.
- Reinstall the wheel, lower the vehicle, and torque the wheel lug nuts to specification.
- Because small length variations affect alignment, have a professional wheel alignment performed after installation to ensure proper toe settings and tire wear prevention.
About Redline Select
Redline Restomotive® has established itself as a premier brand in the world of classic car restoration, providing enthusiasts with high-quality parts that meet the exacting standards of original manufacturer specifications. Dedicated to the preservation of American automotive history, Redline Restomotive® combines advanced manufacturing techniques with an in-depth understanding of vintage vehicles. The result is a range of products that seamlessly blend into the design and function of classic cars, giving restorers and collectors the assurance that each part reflects the era’s style, quality, and performance.
Redline Select® is our premium line of steering and suspension products for all vehicle makes and models including both North American and Import vehicles. We have partnered with an ISO 9001/QS9000/TS16949 certified manufacturing facility with more than 40 years of experience in producing components that perform to the standards our customers expect. Our steering and suspension parts are backed by multiple quality control checks along the way—during production, prior to shipping from the factory, and at arrival. With our ISO 9001:2015 certification, we observe the world’s highest standards for quality management.
Vehicle Fitment:
The Vehicle Fitment Guide is to be used as a general reference. The data has been provided by our suppliers and manufacturers and may contain errors or incorrect data. Always refer to a professional to verify correct fitment for your vehicle.
| Make |
Model |
Years |
| Dodge |
Ram 1500 |
2008 |
| Dodge |
Ram 2500 |
2003 - 2010 |
| Dodge |
Ram 3500 |
2003 - 2010 |
| Ford |
Excursion |
2000 - 2005 |
| Ford |
F-250 Super Duty |
1999 - 2019 |
| Ford |
F-250 |
1999 |
| Ford |
F-350 Super Duty |
1999 - 2019 |
| Ford |
F-450 Super Duty |
1999 - 2004 |
| Ford |
F-53 Motorhome Chassis |
1999 - 2003 |
| Ford |
F-550 Super Duty |
1999 - 2004 |
| Ram |
2500 |
2011 - 2013 |
| Ram |
3500 |
2011 - 2013 |
| Ram |
4500 |
2011 - 2014 |
| Ram |
5500 |
2011 - 2014 |
